Trinity Powerflo II

A Trinity PowerFlo II® Pressure Differential Hopper Car is a specialized covered hopper railcar designed and built by Trinity Industries to pneumatically unload dry bulk commodities using compressed air. PowerFlo II is Trinity’s branded design of a pressure differential hopper. It is engineered specifically for efficient, low-residue discharge of materials that may not reliably empty under gravity alone.

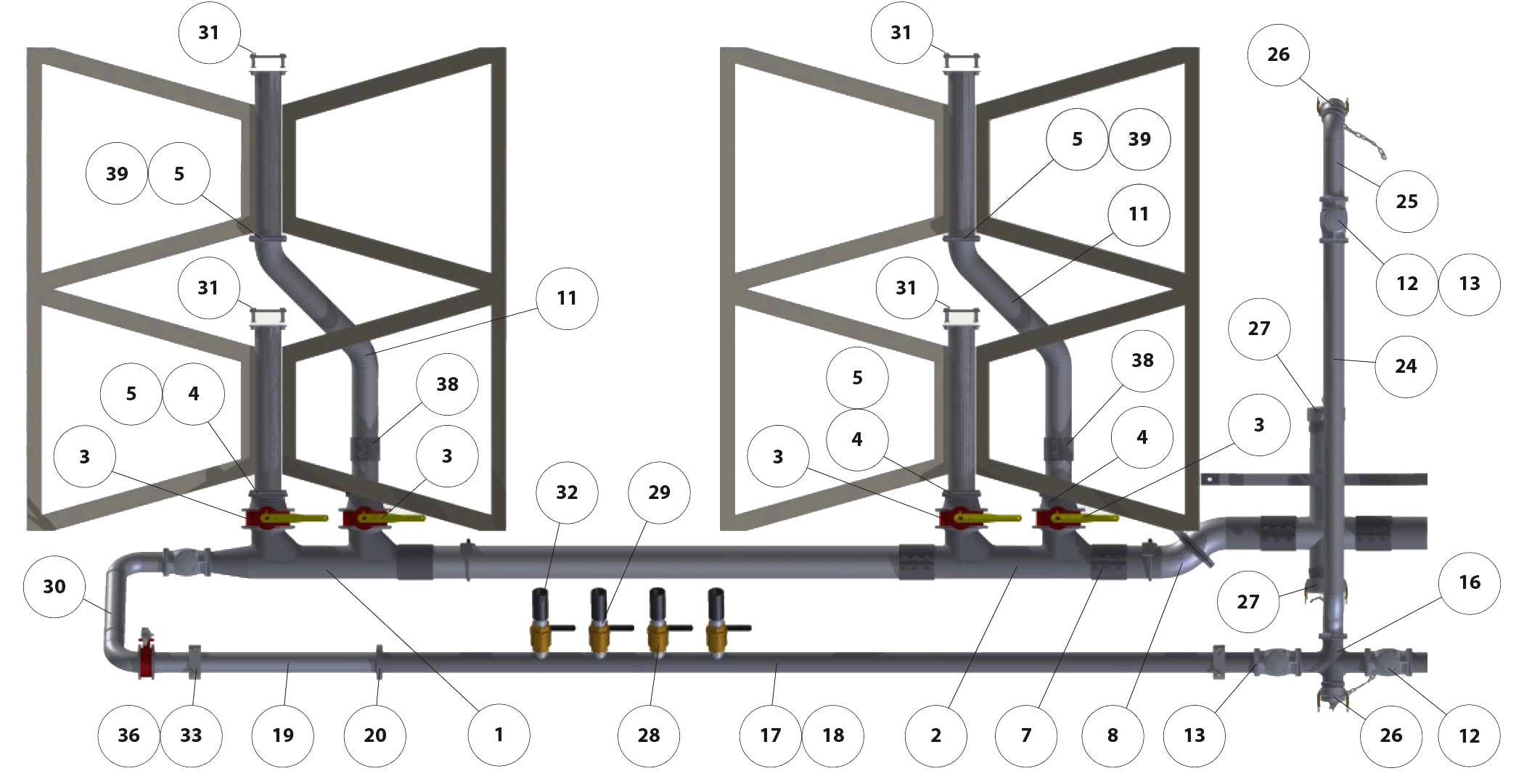

New Arrangement — “A” End

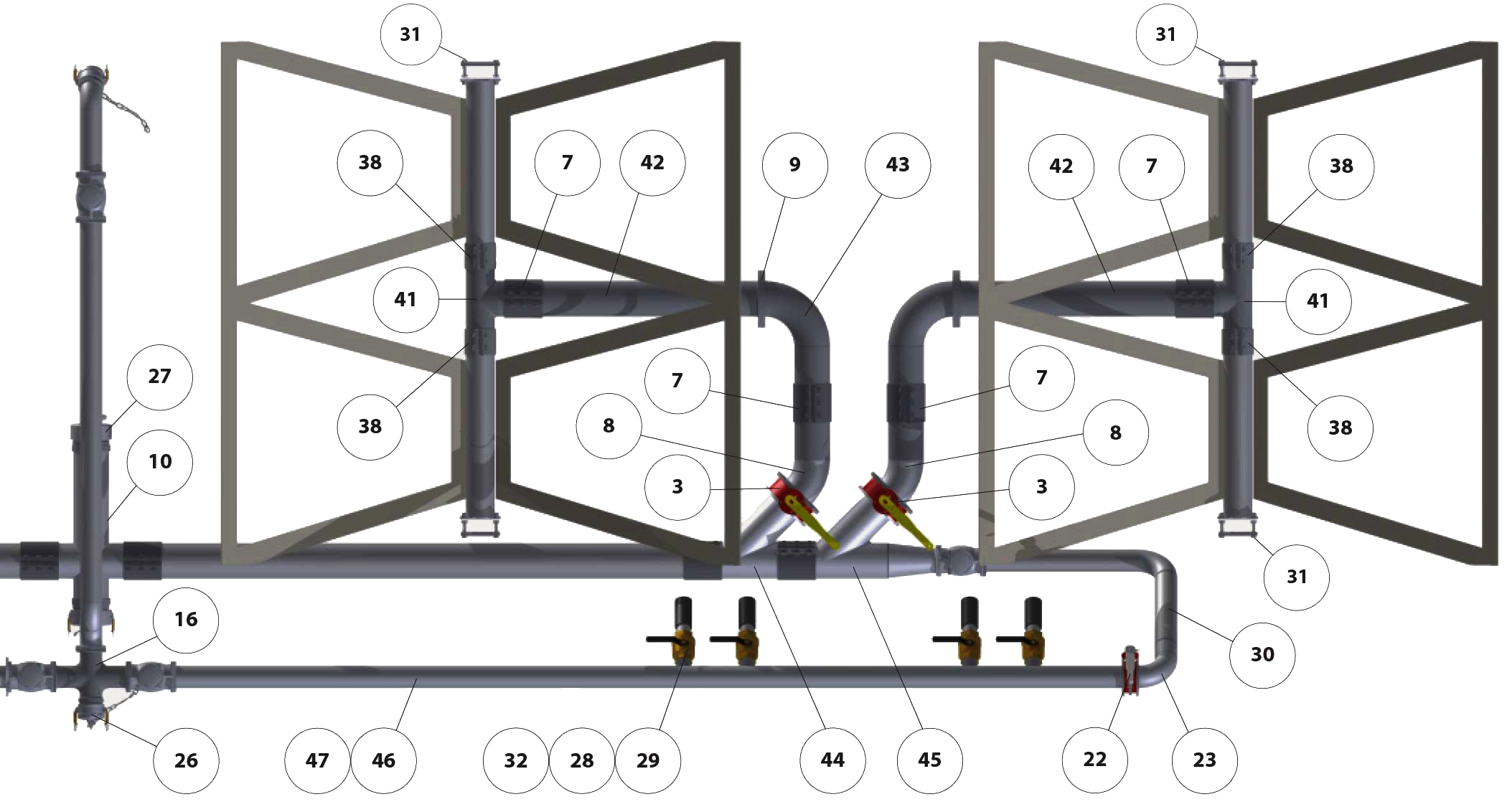

Old Arrangement — “B” End

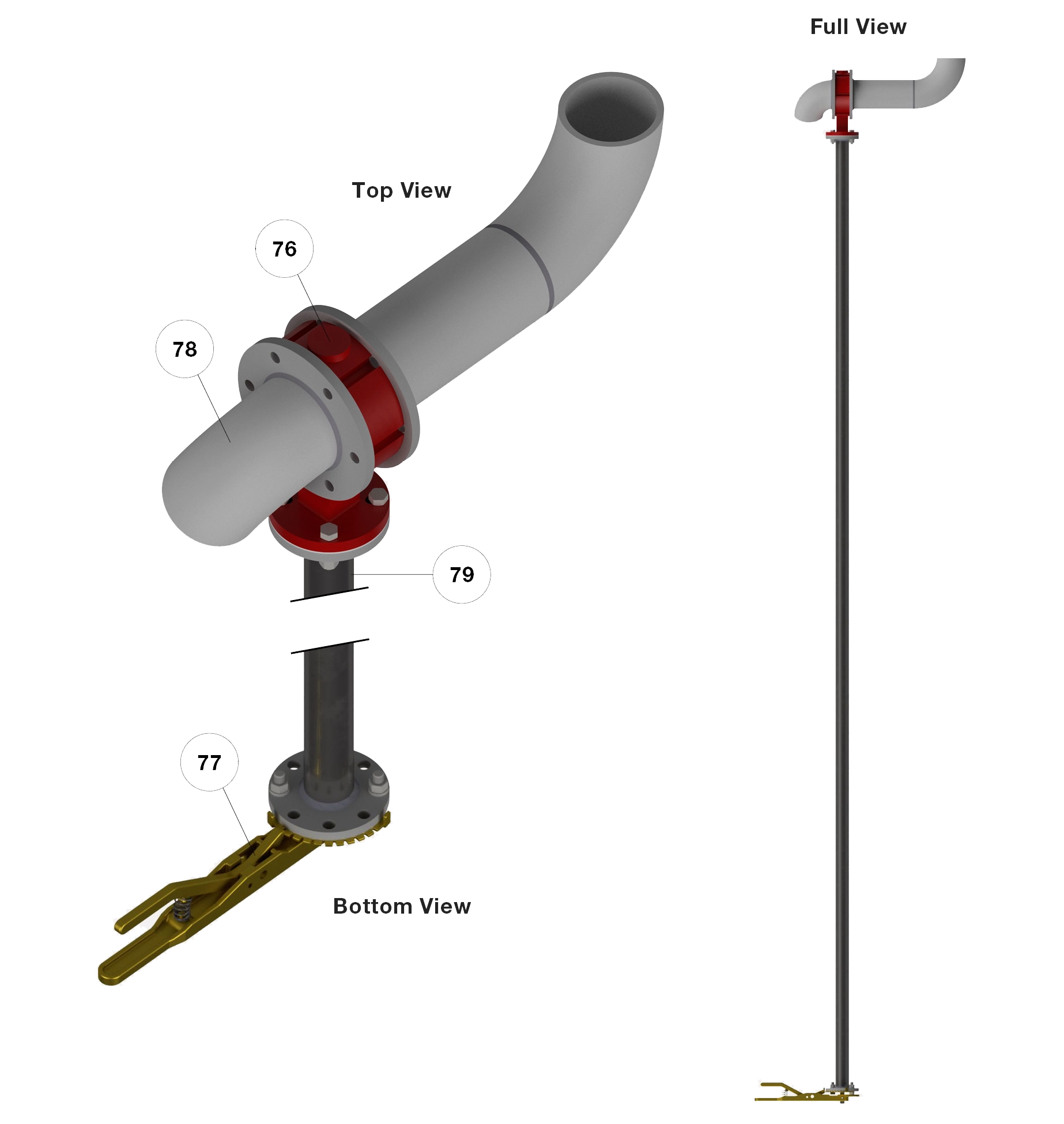

Replacement Parts

Number	Part Name	Part Number
1	Double Lateral 5″ w/Reducer	PD5ADD01
2	Double Lateral 5″	PD5ADD02
3	Butterfly Valve 5″	WBV5A
4	Transition Flange	PD45TF
5	Square Gasket 5″	PD5CPG2
6	Pipe 5″ SCH 40 (In Feet)	P5A40
7	Compression Coupling 5″ x 6″	PD556CC8
8	Flanged Elbow 5″ 45°	PD5A45F1
9	Round Gasket 5″	PD5FG77802
10	Discharge Cross 5″	PD5ACR03
11	Discharge Pipe 4″	PD4ADT1
12	Check Valve	DV3030SQ-IMP
13	Flange Gasket 3″	PD3SG02
14	Lower 90° Elbow — “A” End	PD3A90FHB1
15	Lower 90° Elbow — “B” End	PD3A90FHB2
16	Air Inlet Cross 3″	PD3ACR02
17	Air Manifold 3″ — “A” End	PD3AMGVA
18	Air Manifold 3″ — “B” End	PD3AMGVB
19	Air Manifold Extension 3″	PD3AME1
20	Round Gasket 3″	FG478602
21	Upper 90° Elbow — “A” End	PD3A90FHB3
22	Butterfly Valve 3″	WBV3A
23	Upper 90° Elbow — “B” End	PD3A90FHB4
24	Air Manifold 3″	PD3AMCVR
25	Air Inlet 3″	PD3A45F02
26	Dust Cap Assy 3″	PD3ADCA
27	Dust Cap Assy 5″	PD5ADCA
28	Ball Valve 2″	VBLF20B
29	Hose Nipple 2″	HB2A
30	Hose 3″ (In Feet)	H3-N6236
31	Blind Flange 4″ Assembly	PD4ABSFA
32	Hose 2″ (In Feet)	H2R
33	Air Manifold Bracket 3″	PD3CAMB01
34	Discharge Pipe Bracket 5″	PD5PHB1
35	Discharge Cross Bracket 5″	PD5PHB2
36	U-Bolt 3″	UB42044
37	U-Bolt 5″	SP8466
38	Compression Coupling 4″	PD454CC8
39	Discharge Flange 4″ SS	PD4SSF
40	Lower 90° Elbow — “B” End	PD3A90FHB6
41	Tee 4″ x 5″	PD45AT
42	Flanged Pipe 5″	PD5AF37A
43	Flanged 90° Elbow 5″	PD5A90F01
44	Discharge Lateral 5″	PD5ADL01
45	Discharge Lateral 5″ w/Reducer	PD5ADL01F
46	Air Manifold 3″ — “B” End	PD3AMSVB
47	Air Manifold 3″ — “A” End	PD3AMSVA
48	Lower 90° Elbow — “A” End	PD3A90FHB5

Parts Not Shown

Number	Part Name	Part Number
*	0-30 psi Pressure Gauge (Back)	PD1010GB
*	0-30 psi Pressure Gauge (Bottom)	PD1010GL
*	Gauge Box Assembly	PDGB2A
*	3″ Butterfly Valve Handle	WBV3CH
*	5″ Butterfly Valve Handle	WBV5CH
*	2″ Hose Clamp	HCLMP2W
*	3″ Hose Clamp	FA62305
*	3/4″ Vacuum Breaker	VV34B102A
*	1/4″ Tubing	H14LD
*	Compression Coupling Gasket 4″ x 4″	PD454CCG8
*	Compression Coupling Gasket 5″ x 6″	PD556CCG8
*	Aerator Pipe Sleeve	PD2APS4PE
*	Aerator Pad	PD2AP3C23

* Parts not shown above

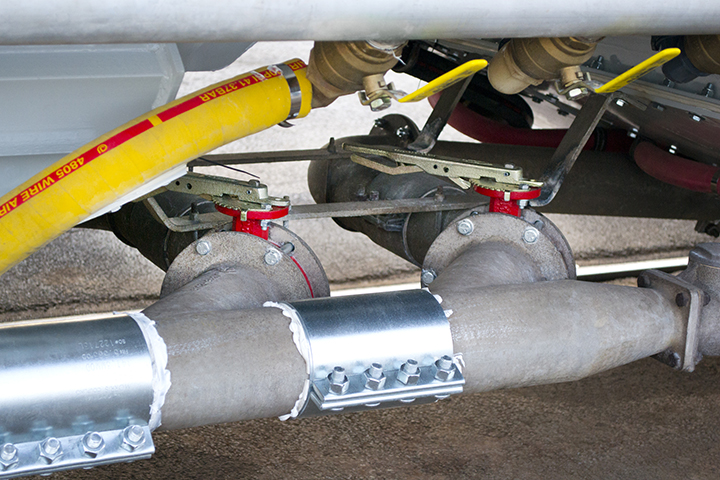

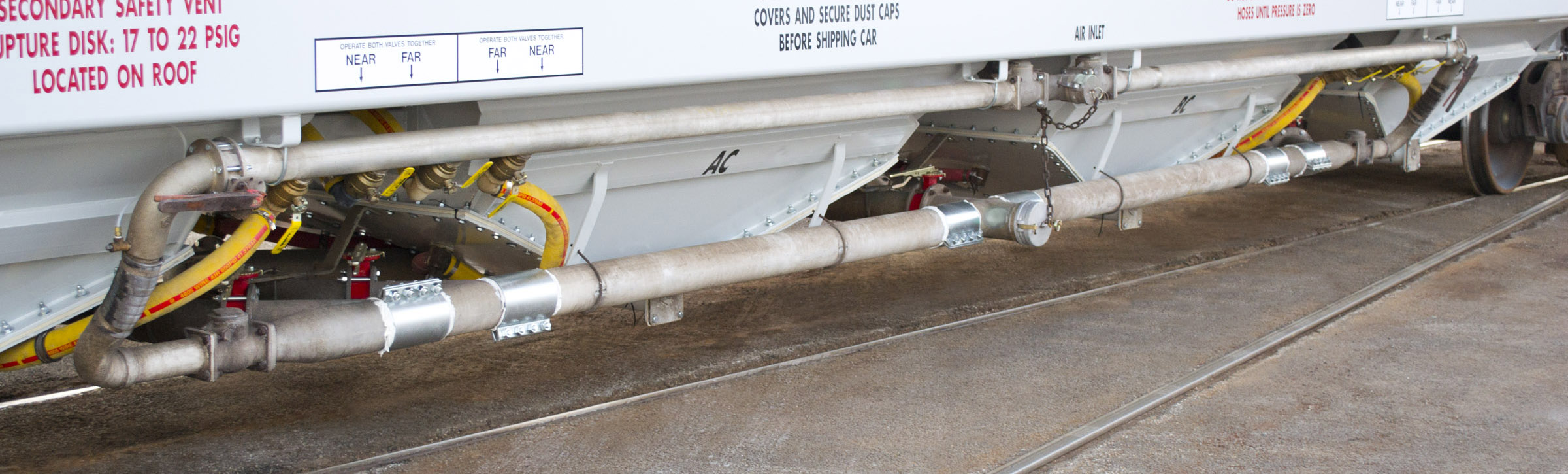

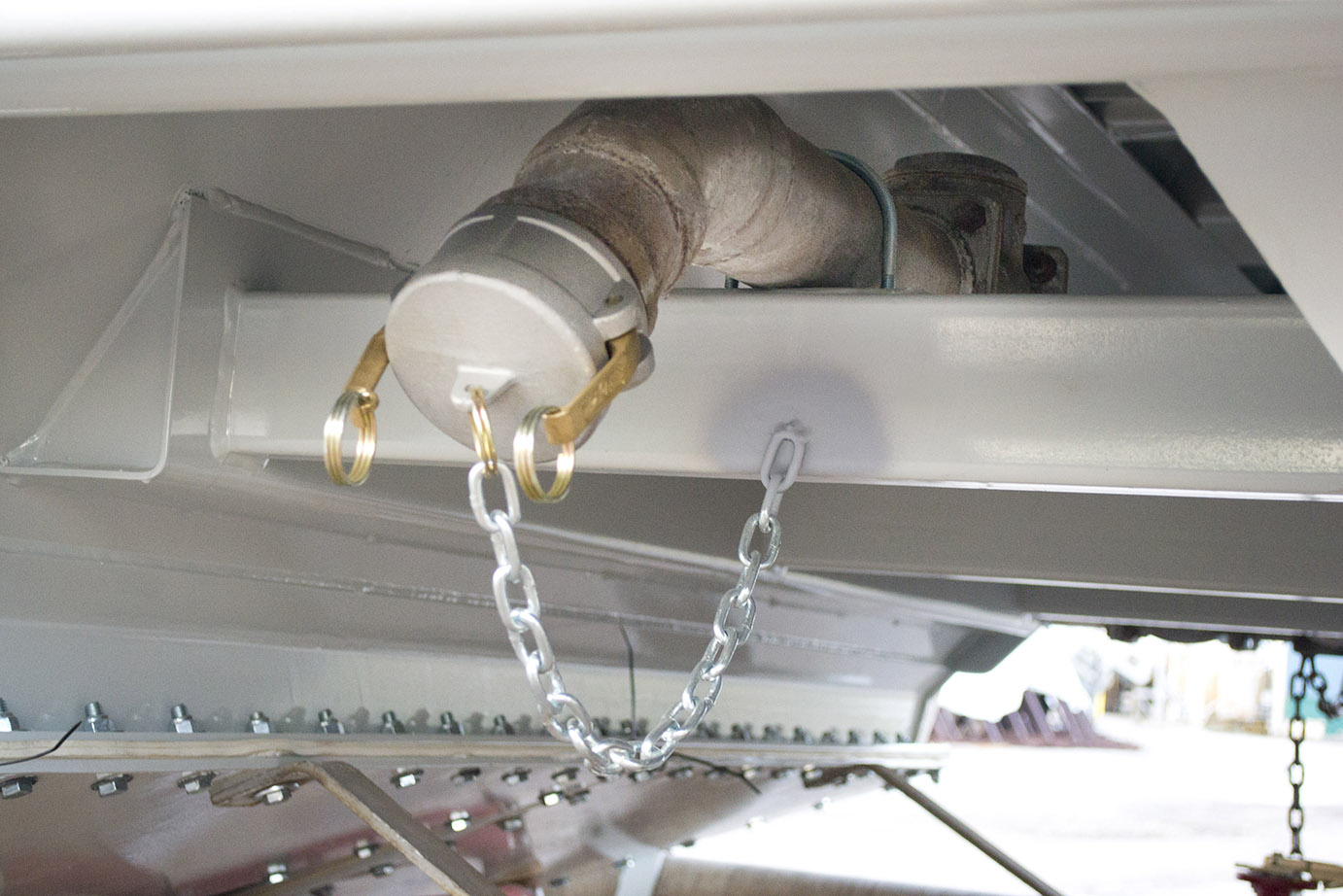

All photos are courtesy of The Andersons — Maumee, OH
www.andersonsinc.com

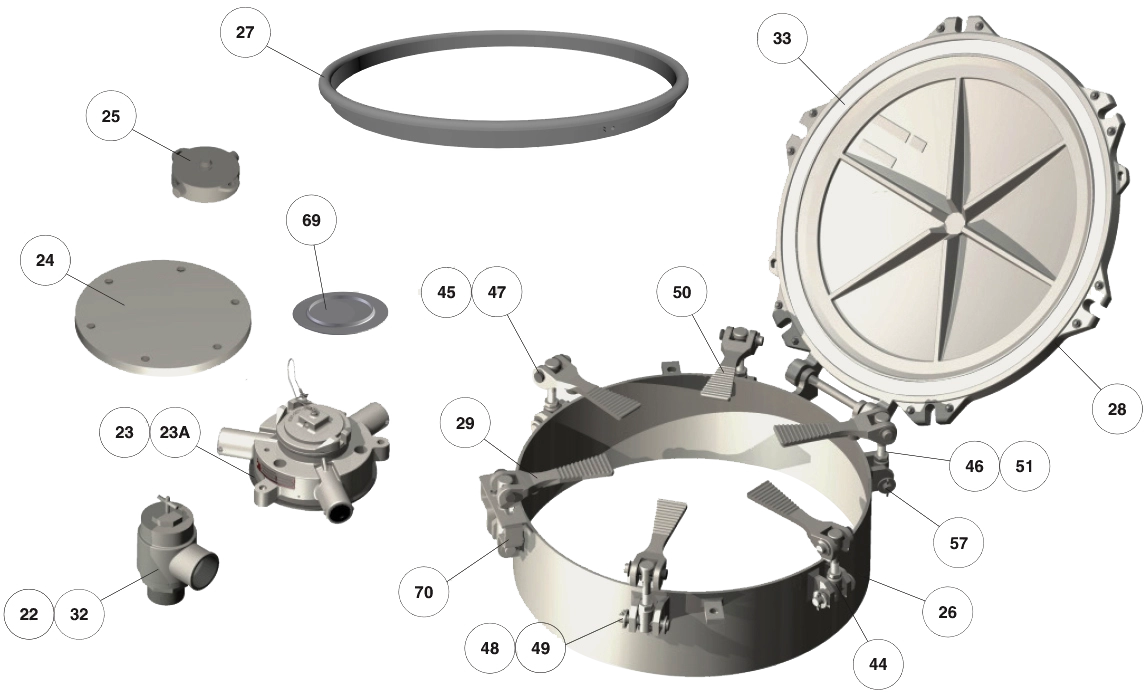

Car Roof

Number	Part Name	Part Number
22	17 psi Pressure Relief Valve	PDPRV2
23	Plastic Safety Vent Housing (Female)	PDSVF550FA
23A	Plastic Safety Vent Housing (Male)	PDSVF550MA
24	Blind Flange Assembly	PD3SPBF02A
25	3″ Air Inlet Cap	PD3AIC
26	20″ Stainless Ring	PD20HCRS
27	Nozzle Gasket	TTNG20FDA
28	20″ Aluminum Cover Assembly	PD20HC1008A
29	Cam Lever Assembly	CLCZKA
32	14.7 psi Pressure Relief Valve	PDPRV1
33	20″ Aluminum Cover Gasket	PD20HCG08
69	17.5 – 22 psi Rupture Disk	RD22PDST
70	Safety Catch	CLSFCZK
*	Cover Wearplate	A16168

Cam Lever Assembly Components

Number	Part Name	Part Number
44	Latch Pin	CLLPCZK
45	½″ x 2-¼″ Clevis Pin	CLP12225CZ
46	Clamp Stud	CLCSCZK
47	½″ Pal Nut	RFPN
48	½″ x 2-3/4″ Clevis Pin	CLP12275CZ
49	1/8″ x 3/4″ Cotter Pin	RF16271
50	Cam Lever Latch	CLCZ
51	½″ Jam Nut	JN12
57	½″ Flat Washer	A20W
