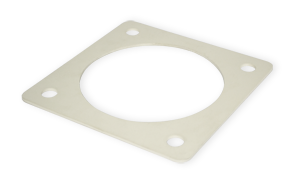

Flange Gasket 5″
White FDA Nitrile, 1/8″ Thickness, (4) 9/16″ Bolt Holes on 7 1/16″ Bolt Circle, 6 1/2″ Square
CAD Drawing
Download CADSee also
