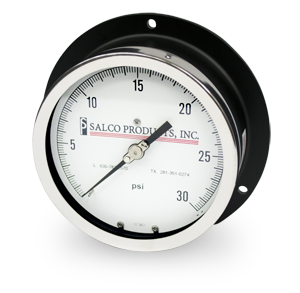

Pressure Gauge 0-30 psi
Cast Aluminum, 4 1/2″ Face, 1/4″ NPT Back Connection, Back Mount
Accuracy ±0.5% Full Scale, ASME B40.100 Grade 2A
CAD Drawing
Download CADSee also
