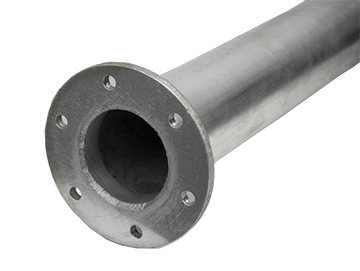

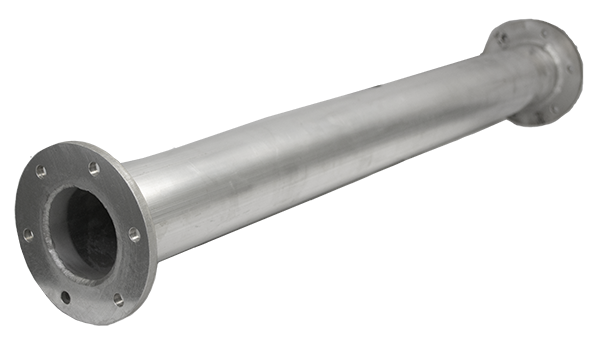

PD Air Manifold Extension
Alum, Flange x Flange, (6) 7/16″ Bolt Holes on 4 7/8″ Bolt Circle, Schedule 40 Pipe 36″ Overall Length. For Trinity Powerflow II.
CAD Drawing
Download CADSee also
