Discharge Lateral 5"

Discharge Lateral 5" - Image 2

Part #: PD5ADL01

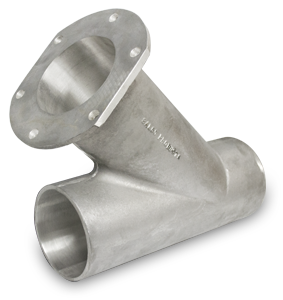

Discharge Lateral 5″

Aluminum, Plain Pipe x Plain Pipe,
Flange Middle Connection, (6) 9/16″ Bolt Holes
on 7 5/8″ Bolt Circle, 14 3/16″ Long
9.675 lbs

Default CAD icon

CAD Drawing
