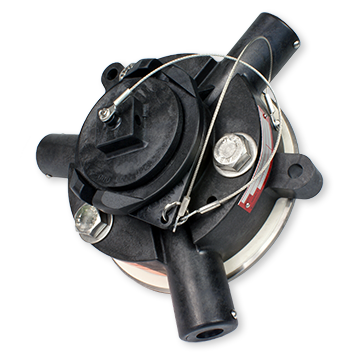

Quick Inspect Safety Vent w/ Flange
Black Noryl, White FDA Nitrile Gaskets, No Surge Protector, 304 SS 2″ Male NPT Flange, 2 1/2″ Tall, 22 psi SS Rupture Disc
CAD Drawing
Download CADSee also
