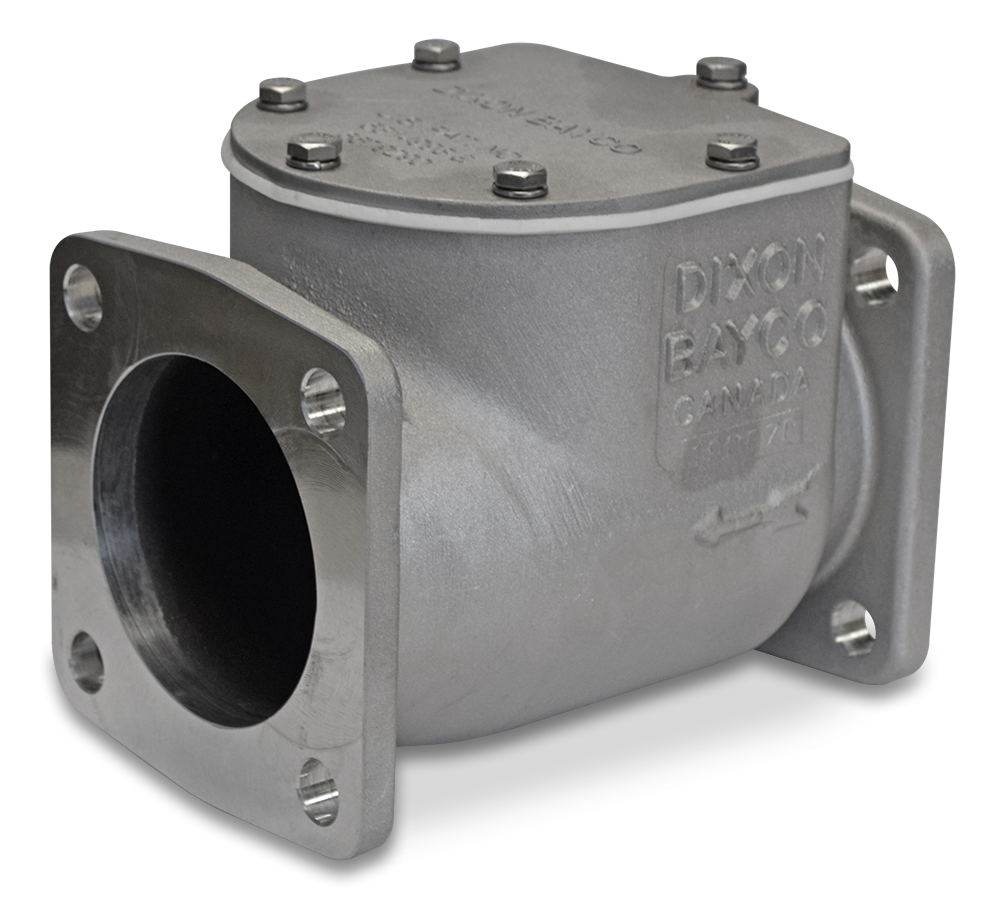

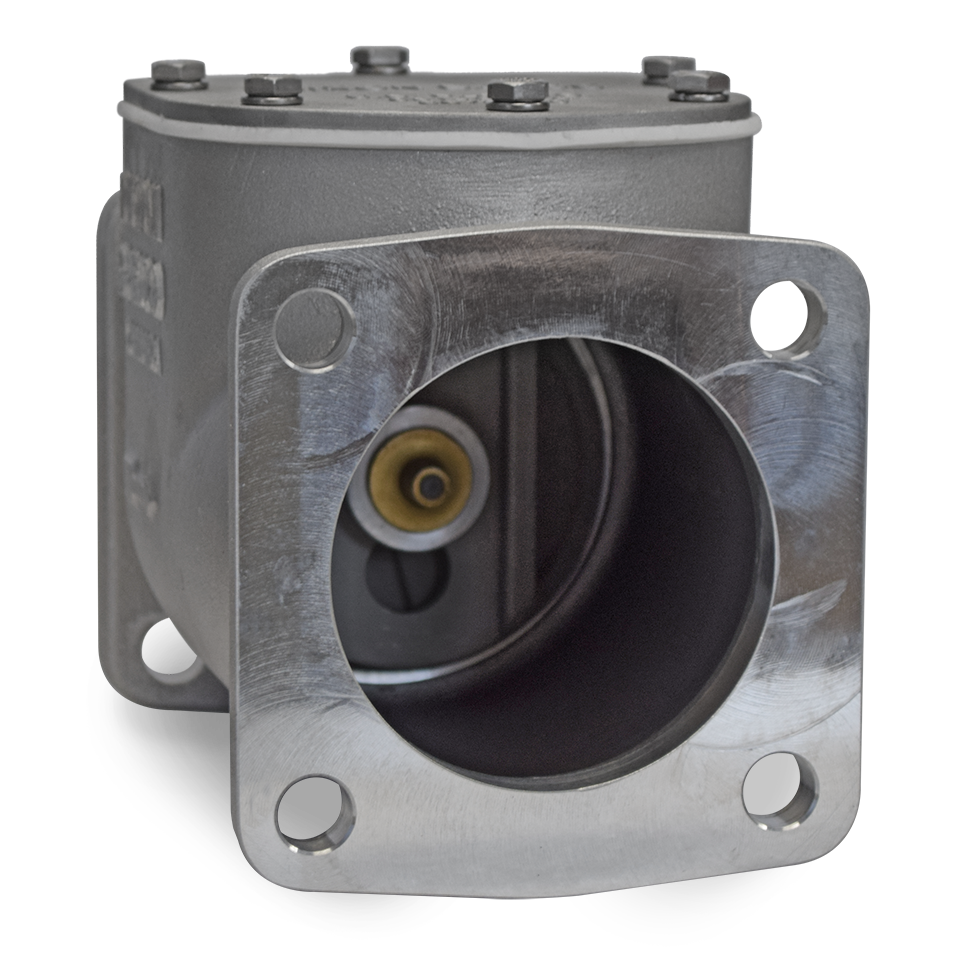

Part #: DV3030SQ-IMP

Check Valve 3-inch

Bayco, Cast Aluminum, Square Flange, (4) 9/16-inch Bolt Holes
on 5-inch Bolt Circle, FDA White Silicone Seal

Default CAD icon
CAD Drawing
Download CAD

Specifications

Car Type
PD Car
Connection Type
Flanged
Manufacturer
Dixon/Bayco
Material
Aluminum
Size
3"
Valve Type
Check
