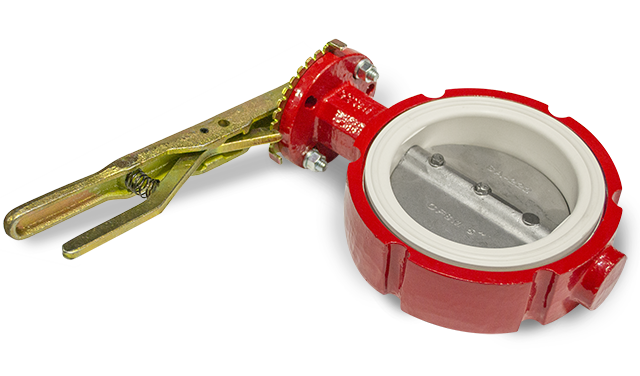

Butterfly Valve 5-inch

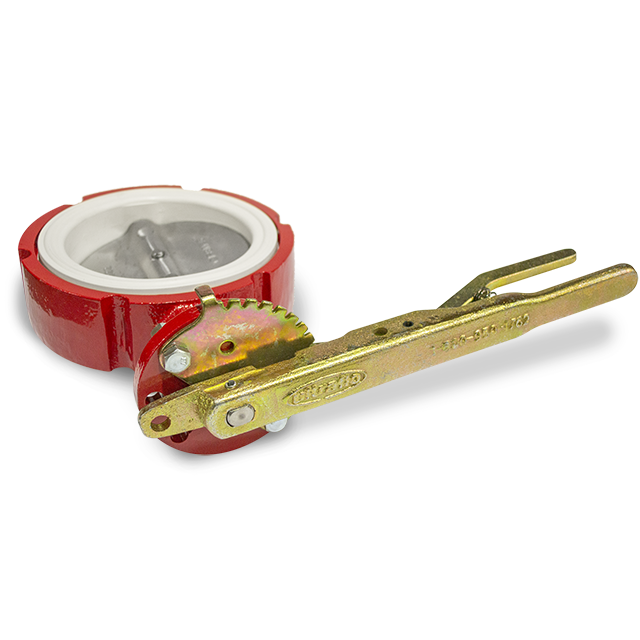

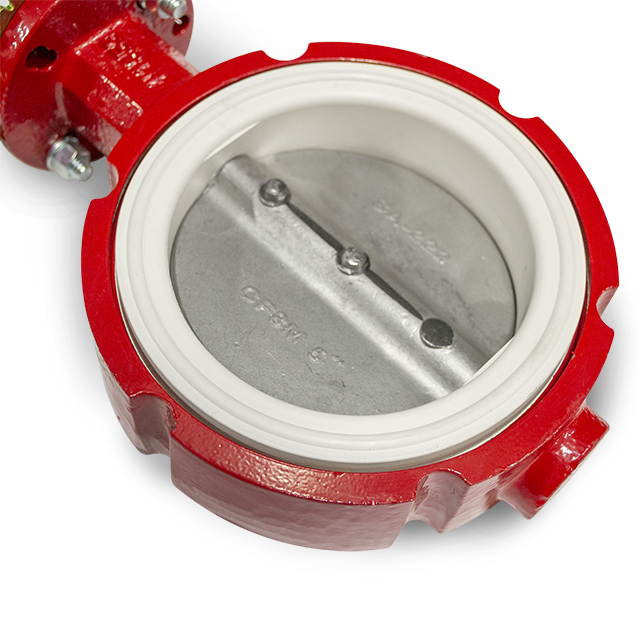

Cast Iron Body, 316 Stainless Steel Riveted Disc, Stainless Steel Stem, w/notches on sides, White FDA Nitrile Seat, with Handle
CAD Drawing
Download CADSpecifications
Car Type
PD Car
Manufacturer
Bray
Material
Cast Iron
Size
5"
Valve Type
Butterfly
