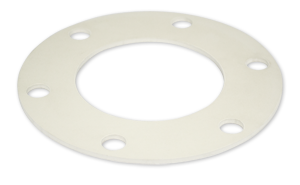

Flange Gasket 4 7/8″
White FDA Nitrile, 1/8″ Thick, (6) 1/2″ Bolt Holes on 4 7/8″ Bolt Circle, 3 1/4″ ID x 5 3/4″ OD, Duro 60±5
CAD Drawing
Download CADSee also
