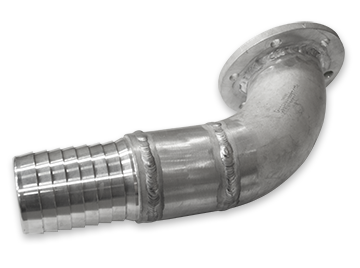

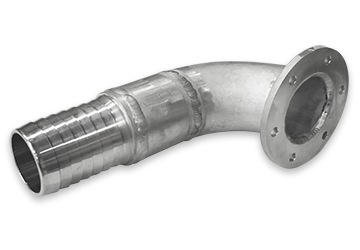

Elbow 3″x90 Degree
Alum, Hose Barb x Flange (6) 1/2″ Bolt Holes on 4 5/8″ Bolt Circle, Long Radius
CAD Drawing
Download CADSee also
