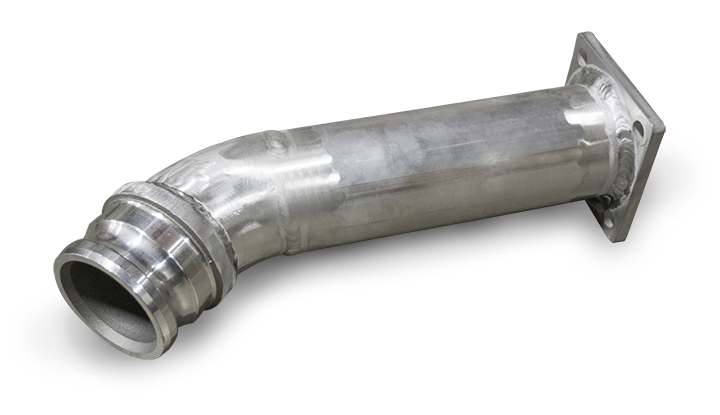

PD Air Pipe Assembly 3″x45°
Alum, Male Adapter x Flange, (4) 9/16″ Bolt Holes on 5″ Bolt Circle, Schedule 40, Short Radius
CAD Drawing
Download CADSee also
Elbow 3″x90°
Elbow 3″x90°
Alum, Hose Barb x Flange(4) 9/16" Bolt Holes on 5" Bolt Circle.
Discharge Tube 4″
Discharge Tube 4″
Aluminum, Schedule 40, (4) 5/8" Bolt Holes on 7 1/16" Bolt Circle, Double Bend.
Flanged Elbow 5″x45°
Flanged Elbow 5″x45°
Alum, Weld Socket x Flange, (6) 9/16" Bolt Holes,
