7/8 x 5-Inch Stainless Steel Eyebolt Assembly with Seal Hole and Safety Collar, Heavy Hex Nut, Thick Head

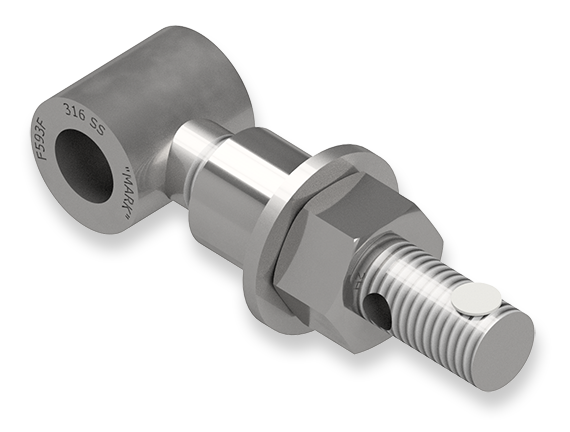

Salco Products (EB785XTRAS6C) 7/8 x 5-Inch Stainless Steel Eyebolt Assembly with Seal Hole and Safety Collar, Heavy Hex Nut and Thick Head features a 316 stainless steel eyebolt that is 7/8-inch in diameter and 5-inches in length with a 1-5/8-inch thick head and a 13/32-inch seal hole. The eyebolt has 7/8 -9 UNC -2A rolled threads with the length of 4-inches. The inner diameter of the eye is 13/16-inches, with the outer diameter being 1-1/2-inches. Includes a 7/8-inch, carbon steel, heavy hex nut. A 7/8-inch, 316 stainless steel, flat washer with a 2-inch outer diameter, and a 7/8-inch, 316 stainless steel, eyebolt safety collar. There is a 1/4-inch x 13/16-inch, 304 stainless steel, huck rivet at the end of the threads to prevent the heavy hex nut from coming off.
Key features
Fits most OEM Manway configurations.
Standard eyebolts can be customized to your specifications.
3/4-Inch to 1-Inch diameters available.
4-Inch to 7-Inch lengths available.
Variety of different safety mechanisms available.
Hex and square nuts available.
