New Rail
Freshly rolled at the mill and never installed, new rail offers full dimensions, certified metallurgy, and its complete service life ahead of it. It is the ideal choice for mainline track, heavy-haul routes, and any application where maximum life and consistent, certified quality matter most.
Rail Catalog
A.R.E.A. Rail (90# – 136#)
Our rail selection includes 12# to 85# A.S.C.E, 90# A.R.A.-A, and 100# to 132# A.R.E.A. Crane rail sections from 104# to175# are available in large quantities, and Birmingham Rail also stocks hard to find special European DIN rails ranging from A-45 to A-120. Supply, delivery and service to meet your demand.

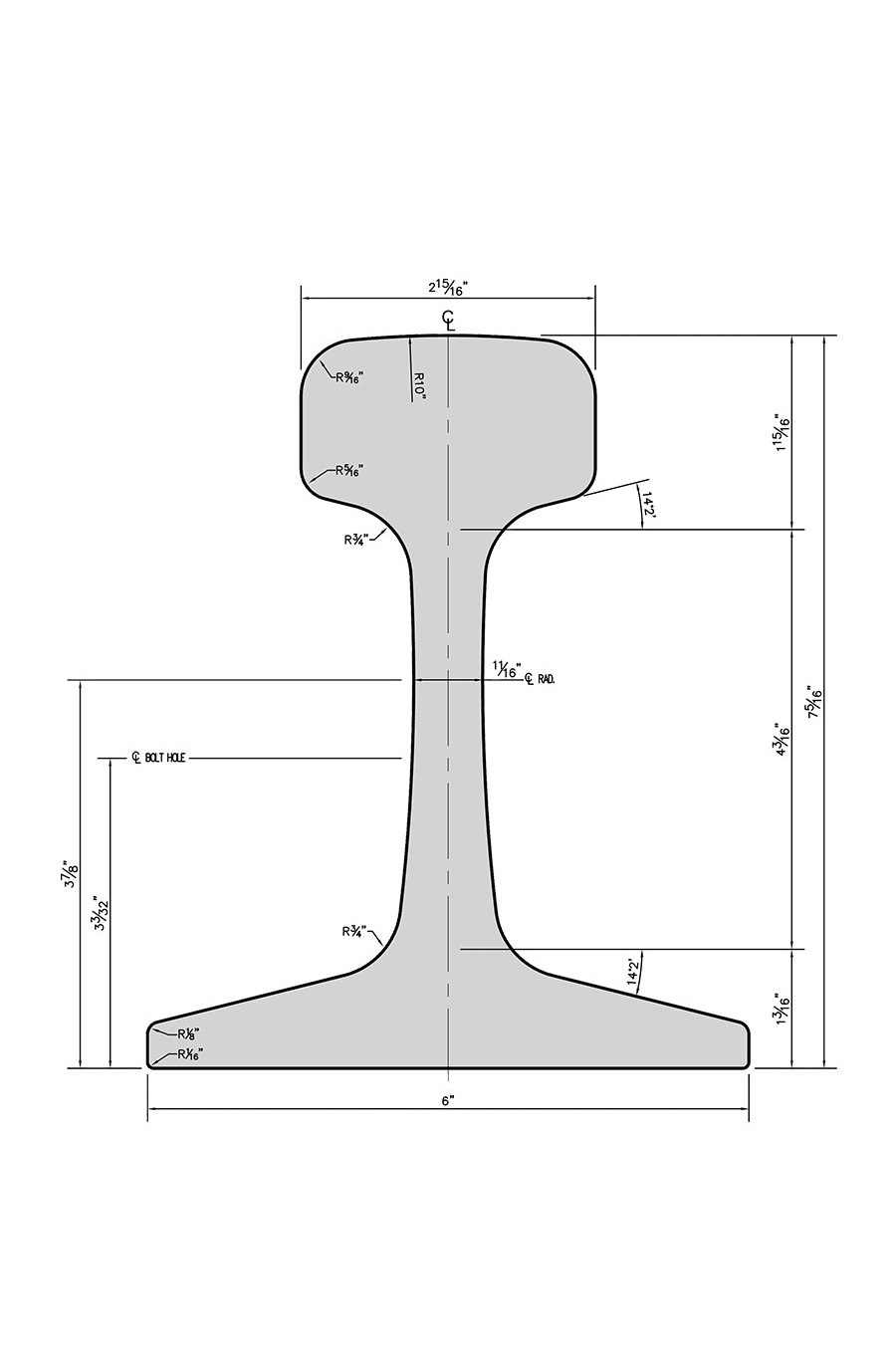

136# A.R.E.A.
Specs:
Standard stock lengths 40’
Standard Drilling 3 1/2” X 6“ x 6”
Joint Bars 120 lbs (with hardware)
Bolt 1”
Standard Fasteners
Hook Bolt 1”
Clip #62
Physical Properties:
Sectional Area
12.95”
Moment of Inertia
88.20”
Neutral Axis, Y
3.20“
Section Modulus
Head: 22.50”
Base: 27.60”
Chemical Properties:
Carbon
.72 to .84
Manganese
.80 to 1.10
Phosphorus
.035 max
Sulfur
.04 max
Silicon
.10 to .50

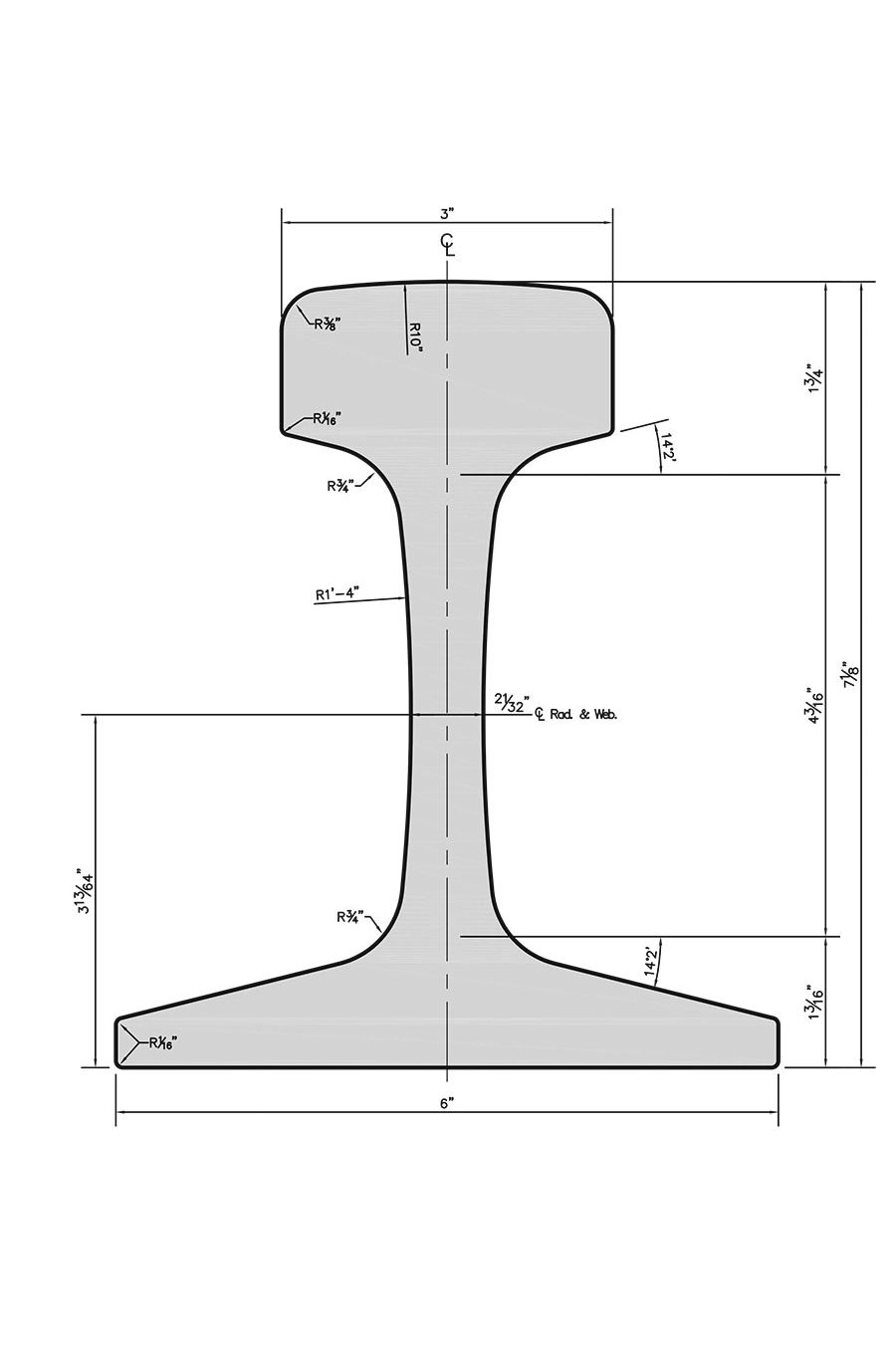

132# A.R.E.A.
Specs:
Standard stock lengths 33’ & 39’
Standard Drilling 3 1/2” X 6” x 6”
Joint Bars 120 lbs (with hardware)
Bolt 1”
Standard Fasteners
Hook Bolt 1”
Clip #62
Physical Properties:
Sectional Area
12.95”
Moment of Inertia
88.20”
Neutral Axis, Y
3.20”
Section Modulus
Head: 22.50”
Base: 27.60”
Chemical Properties:
Carbon
.72 to .84
Manganese
.80 to 1.10
Phosphorus
.035 max
Sulfur
.04 max
Silicon
.10 to .50

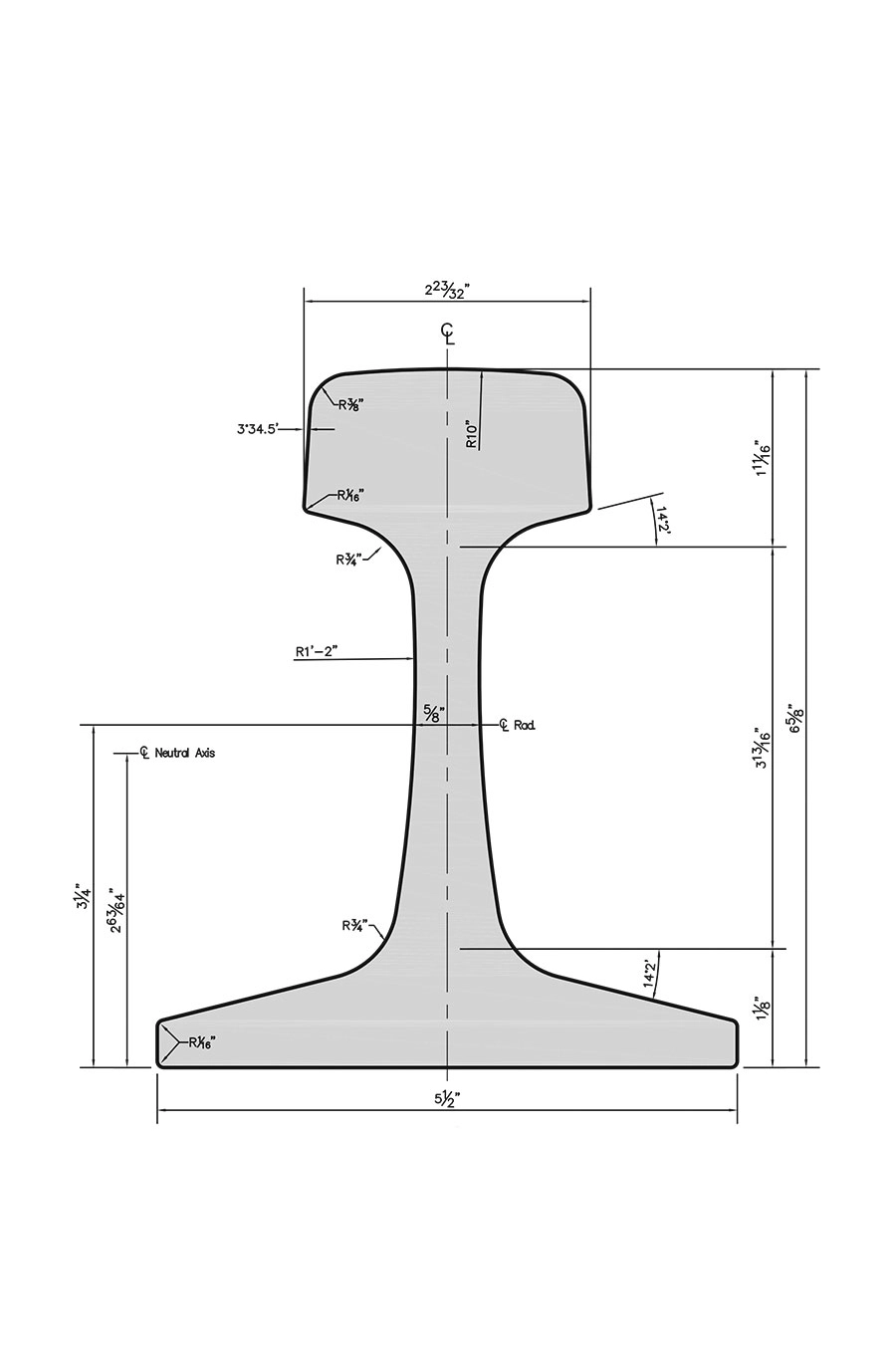

115# A.R.E.A.
Specs:
Standard stock lengths 33’ & 39’
Standard Drilling 3 1/2” X 6“ X 6”
Joint Bars 115 lbs (with hardware)
Bolt 1”
Standard Fasteners
Hook Bolt 1”
Clip #62
Physical Properties:
Sectional Area
11.25”
Moment of Inertia
65.60”
Neutral Axis, Y
2.98”
Section Modulus
Head: 18.00”
Base: 22.00”
Chemical Properties:
Carbon
.72 to .84
Manganese
.80 to 1.10
Phosphorus
.035 max
Sulfur
.04 max
Silicon
.10 to .50

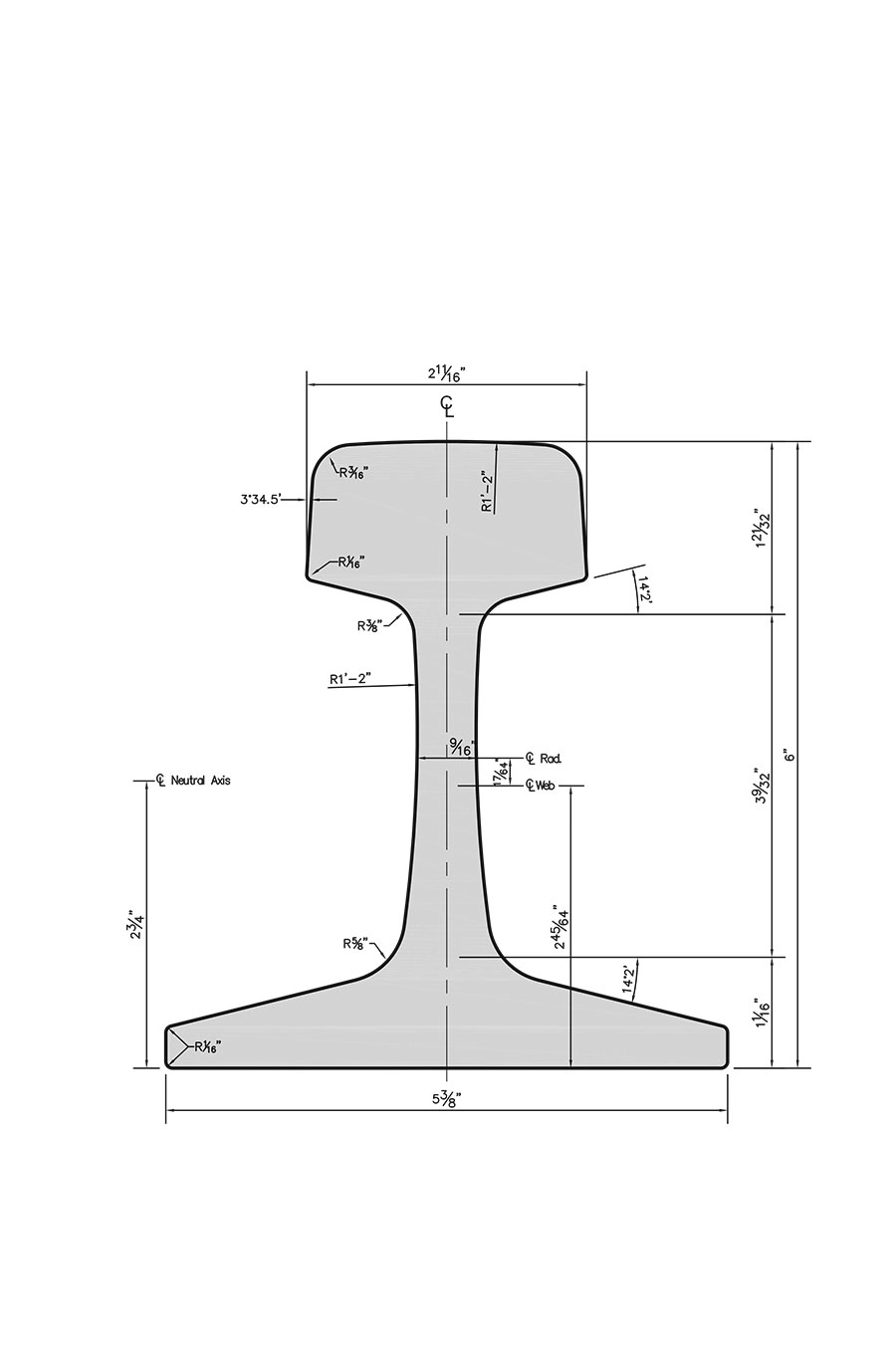

100# A.R.E.A.
Specs:
Standard stock lengths 39’
Standard Drilling 2 11/16 X 5 1/2
Joint Bars 70 lbs (with hardware)
Bolt 1” x 5 1/2
Standard Fasteners
Hook Bolt 7/8”
Clip #62
Physical Properties:
Sectional Area
9.95”
Moment of Inertia
49.00”
Neutral Axis, Y
2.75”
Section Modulus
Head: 15.10”
Base: 17.80”
Chemical Properties:
Carbon
.67 to .80
Manganese
.70 to 1.00
Phosphorus
.035 max
Sulfur
.04 max
Silicon
.10 to .50

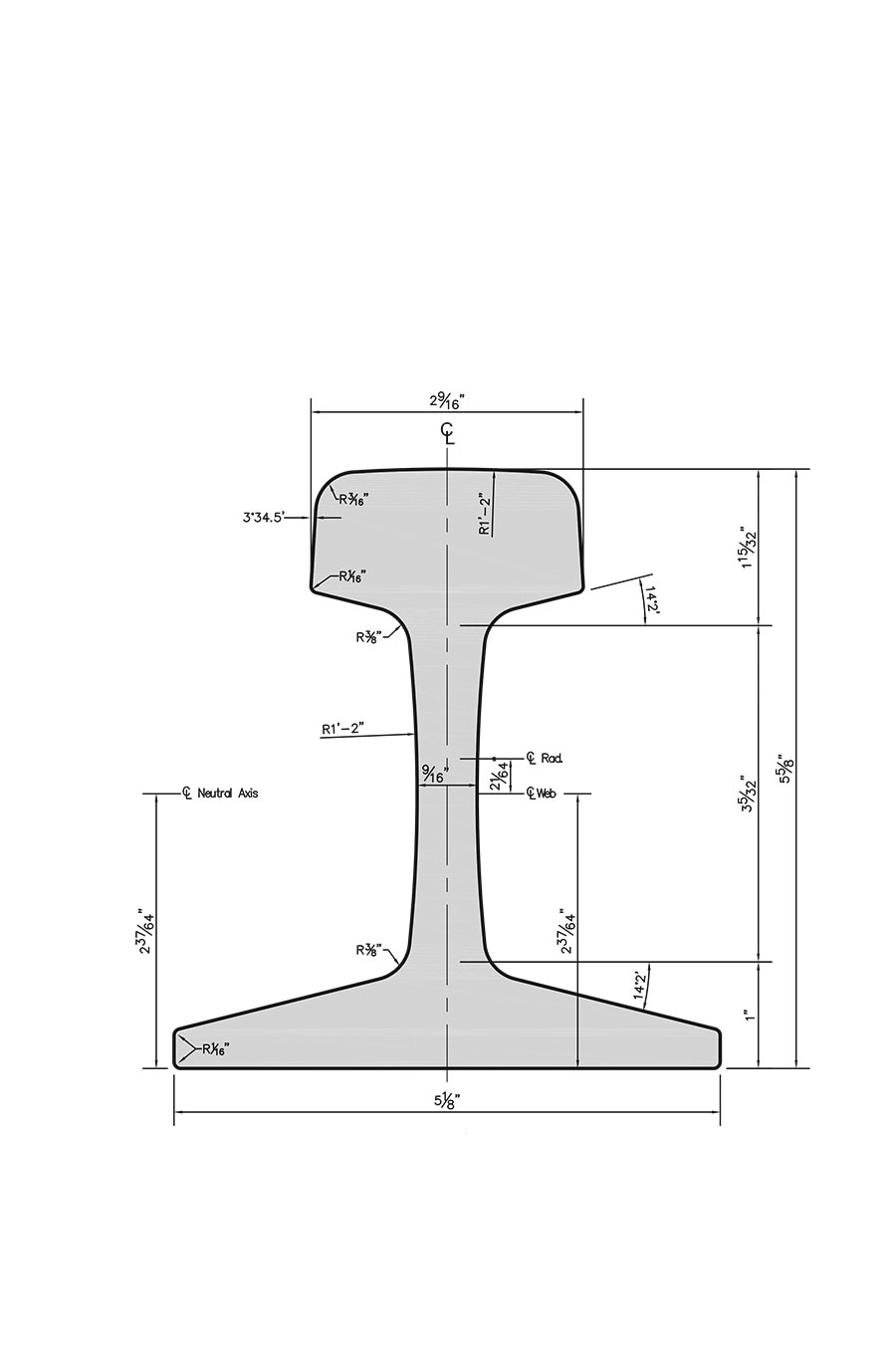

90# A.R.A.-A.
Specs:
Standard stock lengths 39’
Standard Drilling 2 11/16 X 5 1/2
Joint Bars 55 lbs (with hardware)
Bolt 1” diameter
Standard Fasteners
Hook Bolt 7/8”
Clip #62
Physical Properties:
Sectional Area
8.82”
Moment of Inertia
38.70”
Neutral Axis, Y
2.54”
Section Modulus
Head: 12.60”
Base: 15.20”
Chemical Properties:
Carbon
.67 to .80
Manganese
.70 to 1.00
Phosphorus
.035 max
Sulfur
.04 max
Silicon
.10 to .50
