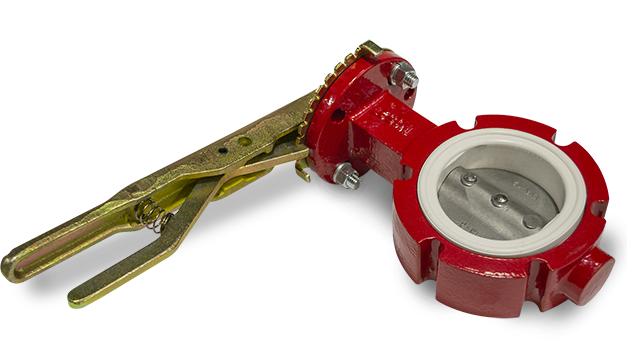

Butterfly Valve 3-inch

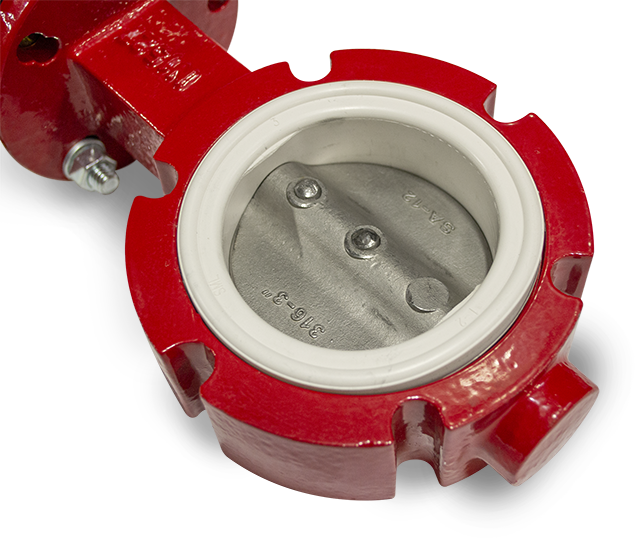

Cast Iron Body, 316 SS Disc, SS Stem,

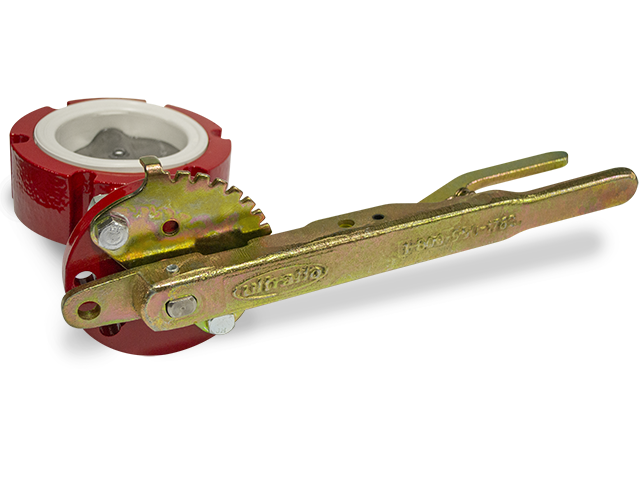

White FDA Nitrile Seat, w/ Handle
CAD Drawing
Download CADSpecifications
Car Type
PD Car
Manufacturer
Bray
Material
Cast Iron
Size
3"
Valve Type
Butterfly
