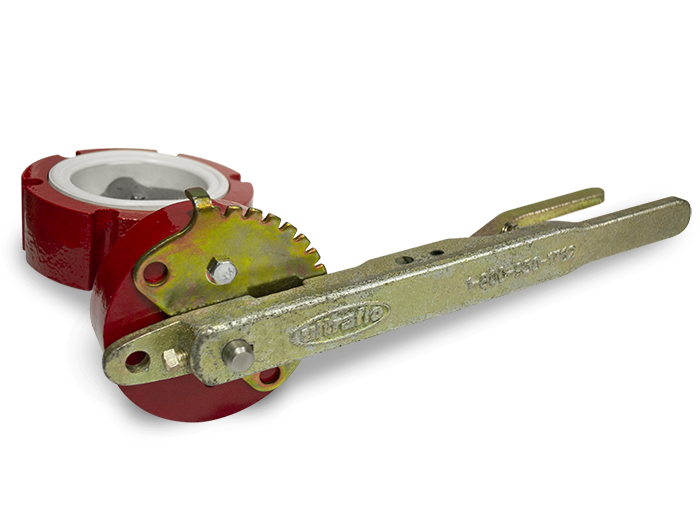

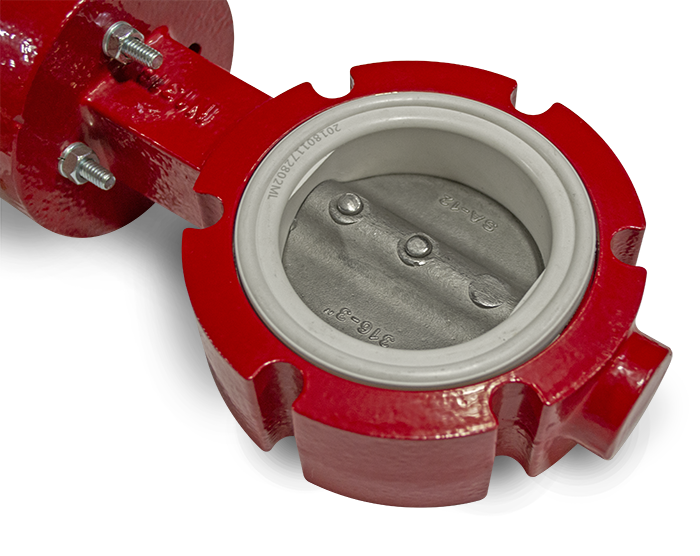

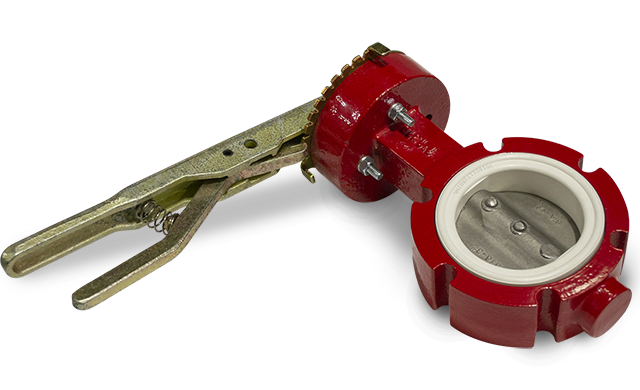

Butterfly Valve 3-inch
Cast Iron Wafer Body, Ultraflo, 316 SS Riveted Disc, SS Stem, Natural Rubber Seat, -inchROUND-inch shaft W/Handle & Key
FOR ACF CARS ONLY!
CAD Drawing
Download CADSpecifications
Car Type
PD Car
Manufacturer
Ultraflo
Material
Cast Iron
Seat/O-Ring Material
White FDA Nitrile
Size
3"
Valve Type
Ball
