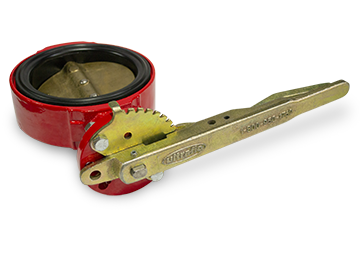

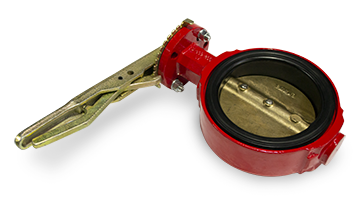

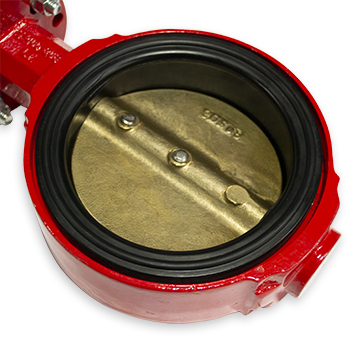

Butterfly Valve 5-inch
Ultraflo, Painted Alum Body, Alum/Bronze Disc, 17-4PH SS Stem, FDA Black Buna Seat, Pinned Plated Lever Handle
CAD Drawing
Download CADSpecifications
Car Type
PD Car
Manufacturer
Ultraflo
Material
Aluminum
Seat/O-Ring Material
Black Nitrile
Size
5"
Valve Type
Butterfly
