Rail Clamps

Birmingham Rail clamp and filler sets hold crane rail securely to the supporting girder while keeping it in precise alignment, available in tight fit and floating configurations with eccentric fillers to suit your installation. Each set is furnished with one hole or two hole clamps and can be supplied with studded fillers for welded stud mounting, all sized to your rail section for a correct, dependable fit.

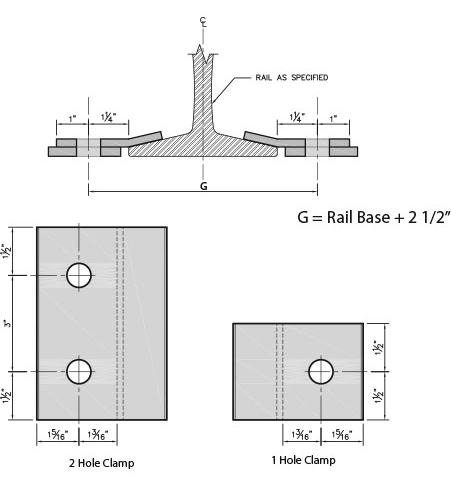

Tight Fit Clamp with Eccentric Filler

Diagram of a tight fit clamp with eccentric filler, showing 1 hole and 2 hole clamp dimensions
Normal spacing for 1 hole clamp and filler is one pair every 2 feet.
Normal spacing for 2 hole clamp and filler is one pair every 3 feet.

Rail Clamp with Studded Filler

Diagram of a floating clamp with eccentric filler, showing 1 hole and 2 hole clamp dimensions
Normal spacing for 1 hole clamp and filler is one pair every 2 feet.
Normal spacing for 2 hole clamp and filler is one pair every 3 feet.

Floating Clamp with Eccentric Filler

Diagram of a rail clamp with studded filler on a wide flange, showing 1 hole and 2 hole clamp dimensions
Normal spacing for 1 hole clamp and filler is one pair every 2 feet.
Normal spacing for 2 hole clamp and filler is one pair every 3 feet.
