Light and Heavy Crane Rail
Birmingham Rail carries one of the industry's most complete crane rail inventories, spanning light ASCE sections from 12# through 85# and heavy crane sections from 104# through 175#. We also stock the full line of European standard A-series rail, including A45, A55, A65, A75, A100, and A120, so you can match nearly any runway specification from a single source.
Crane Rail Catalog
A.S.C.E. Rail (12# – 85#)
Standardized by the American Society of Civil Engineers, these lighter T-rail sections are measured by weight per yard and serve light industrial track, material handling, and smaller crane runways. Their versatile, widely used profile makes them a dependable choice wherever lighter-duty rail is required.
- 12# A.S.C.E.
- 20# A.S.C.E.
- 25# A.S.C.E.
- 30# A.S.C.E.
- 40# A.S.C.E.
- 60# A.S.C.E.
- 80# A.S.C.E.
- 85# A.S.C.E.

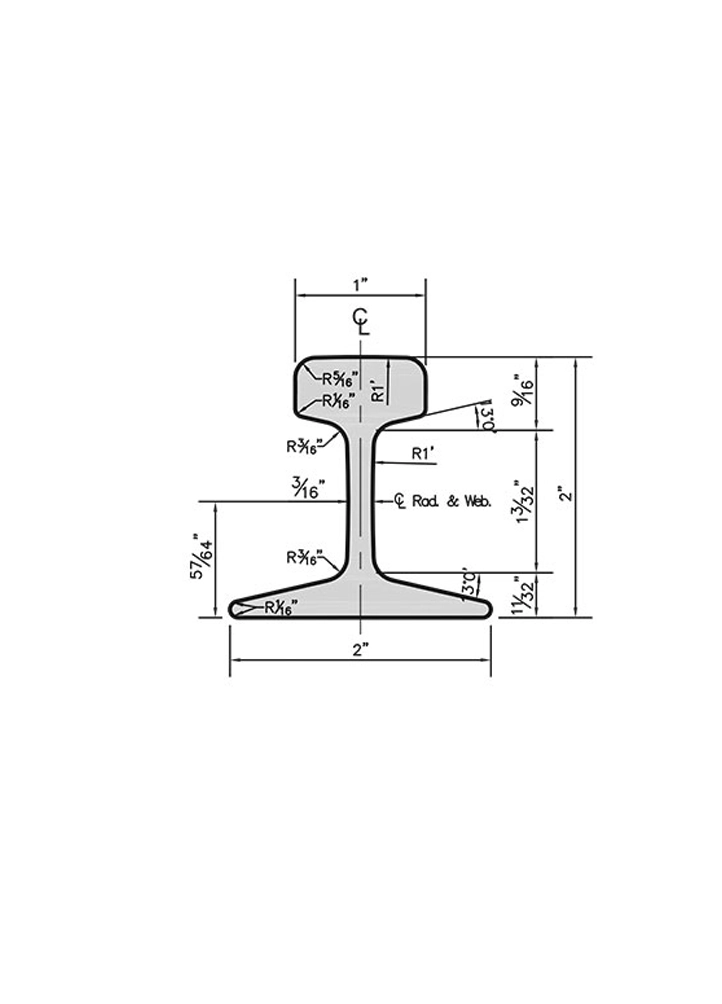

12# A.S.C.E.
Specs:
Standard stock lengths 20’ & 30’
Standard Drilling 2” X 4”
Joint Bars 5 lbs (with hardware)
Bolt 1/2” diameter
Standard Fasteners
Hook Bolt 1/2”
Clip #114
Physical Properties:
Sectional Area
2.00”
Moment of Inertia
1.93”
Neutral Axis, Y
1.26”
Section Modulus
Head 1.41”
Base
1.53”
Chemical Properties:
Carbon
.40 to .60
Manganese
.50 to .90
Phosphorus
.045 max
Sulfur
.05 max
Silicon
.40 max

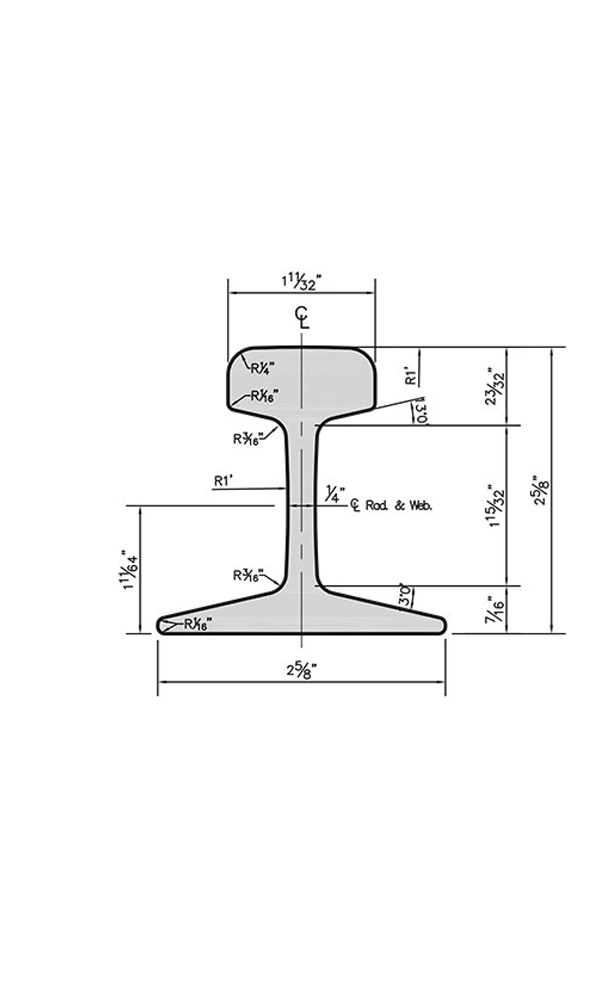

20# A.S.C.E.
Specs:
Standard stock lengths 20’ & 30’
Standard Drilling 2” X 4”
Joint Bars 5 lbs (with hardware)
Bolt 1/2” diameter
Standard Fasteners
Hook Bolt 1/2”
Clip #114
Physical Properties:
Sectional Area
2.00”
Moment of Inertia
1.93”
Neutral Axis, Y
1.26”
Section Modulus
Head 1.41”
Base
1.53”
Chemical Properties:
Carbon
.40 to .60
Manganese
.50 to .90
Phosphorus
.045 max
Sulfur
.05 max
Silicon
.40 max

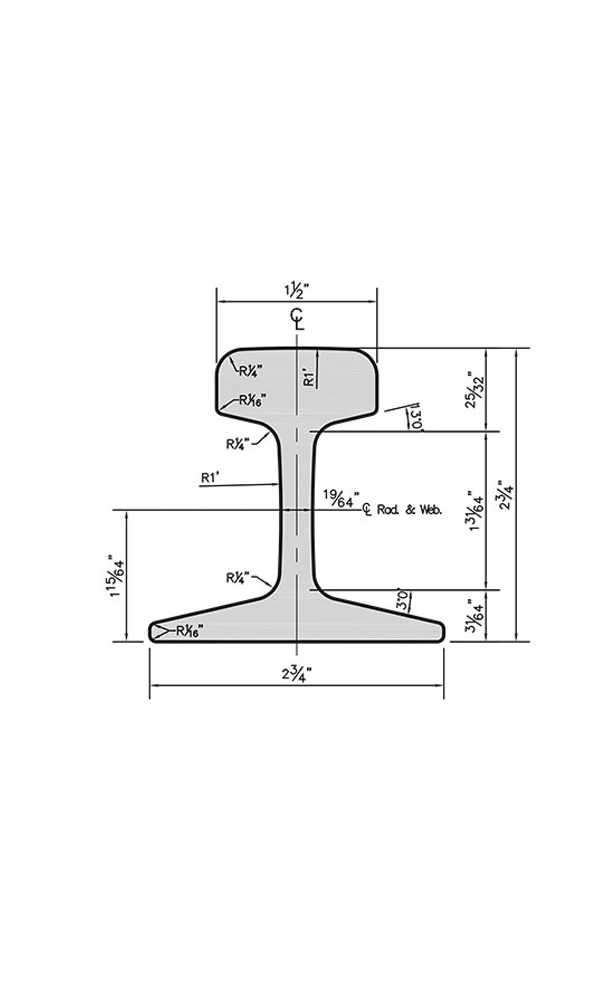

25# A.S.C.E.
Specs:
Standard stock lengths 20’ & 30’
Standard Drilling 2” X 4”
Joint Bars 5 lbs (with hardware)
Bolt 1/2” diameter
Standard Fasteners
Hook Bolt 1/2”
Clip #114
Physical Properties:
Sectional Area
Moment of Inertia
2.40”
Neutral Axis, Y
2.50
Section
1.33”
Modulus
Head: 1.76”
Base: 1.88”
Chemical Properties:
Carbon
.40 to .60
Manganese
.50 to .90
Phosphorus
.045 max
Sulfur
.05 max
Silicon
.40 max

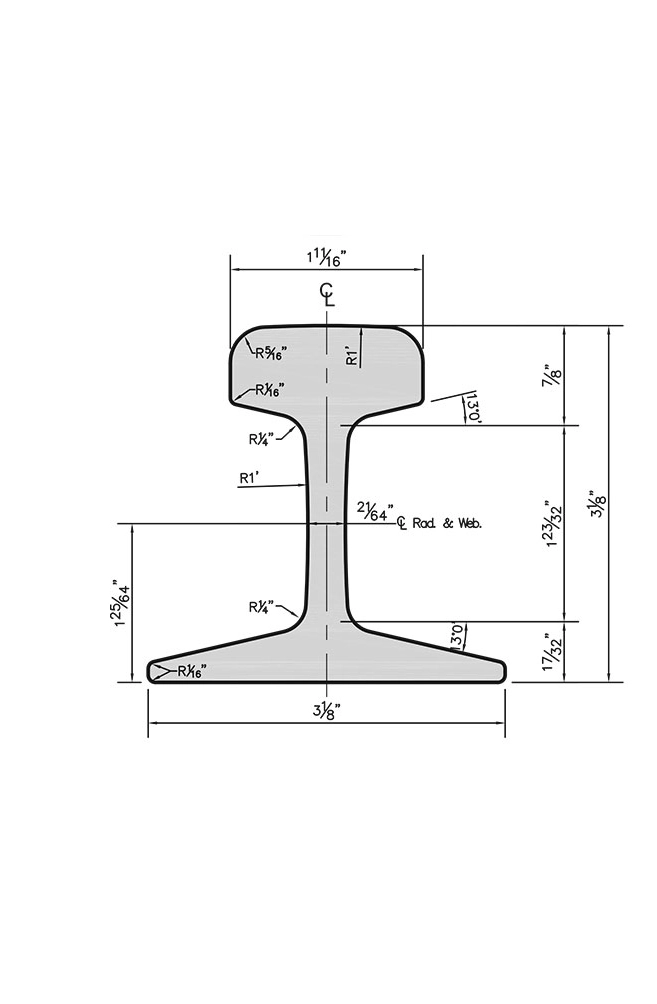

30# A.S.C.E.
Specs:
Standard stock lengths 20’, 30’, 33’ & 40’
Standard Drilling 2” X 4”
Joint Bars 8 lbs (with hardware)
Bolt 5/8” diameter
Standard Fasteners
Hook Bolt 5/8”
Clip #114
Physical Properties:
Sectional Area
3.00”
Moment of Inertia
4.10”
Neutral Axis, Y
1.52”
Section Modulus
Head: 2.55”
Base: 2.70”
Chemical Properties:
Carbon
.40 to .65
Manganese
.60 to 1.00
Phosphorus
.045 max
Sulfur
.05 max
Silicon
.40 max

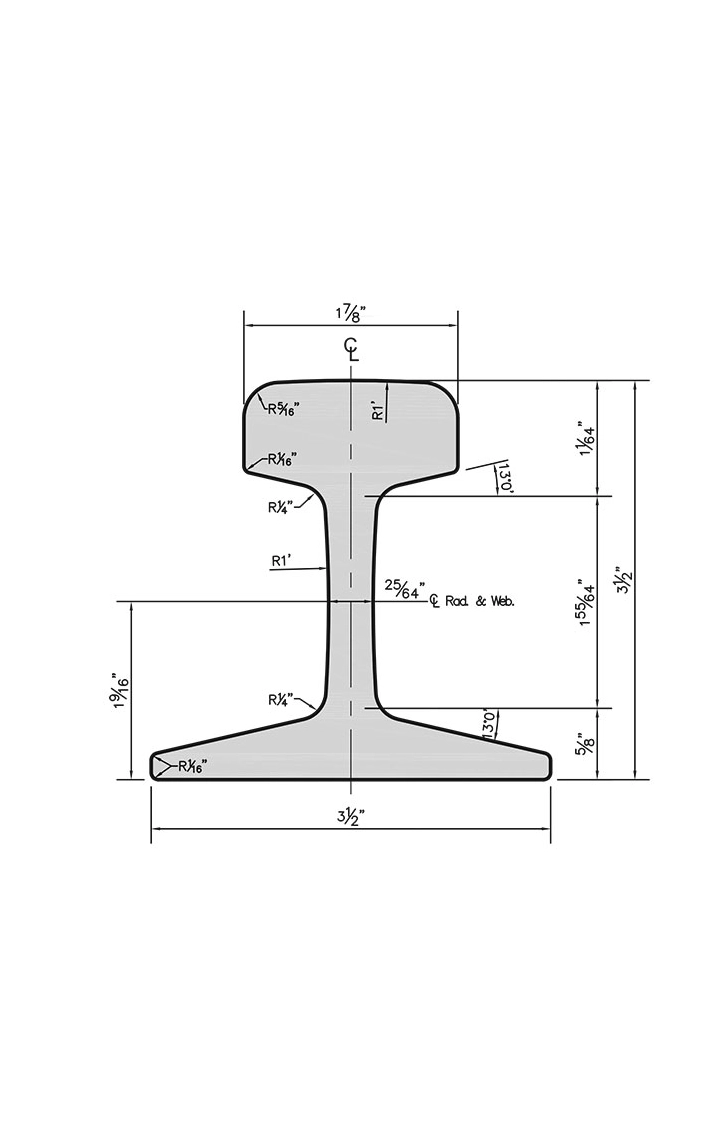

40# A.S.C.E.
Specs:
Standard stock lengths 20’, 30’, 33’ & 40’
Standard Drilling 2 1/2” X 5”
Joint Bars 11 lbs (with hardware)
Bolt 3/4” diameter
Standard Fasteners
Hook Bolt 3/4”
Clip #114 (welding)
#103 / #120 (bolting)
Physical Properties:
Sectional Area
3.94”
Moment of Inertia
6.54”
Neutral Axis, Y
1.68”
Section Modulus
Head: 3.59”
Base: 3.89”
Chemical Properties:
Carbon
.40 to .65
Manganese
.60 to 1.00
Phosphorus
.045 max
Sulfur
.05 max
Silicon
.40 max

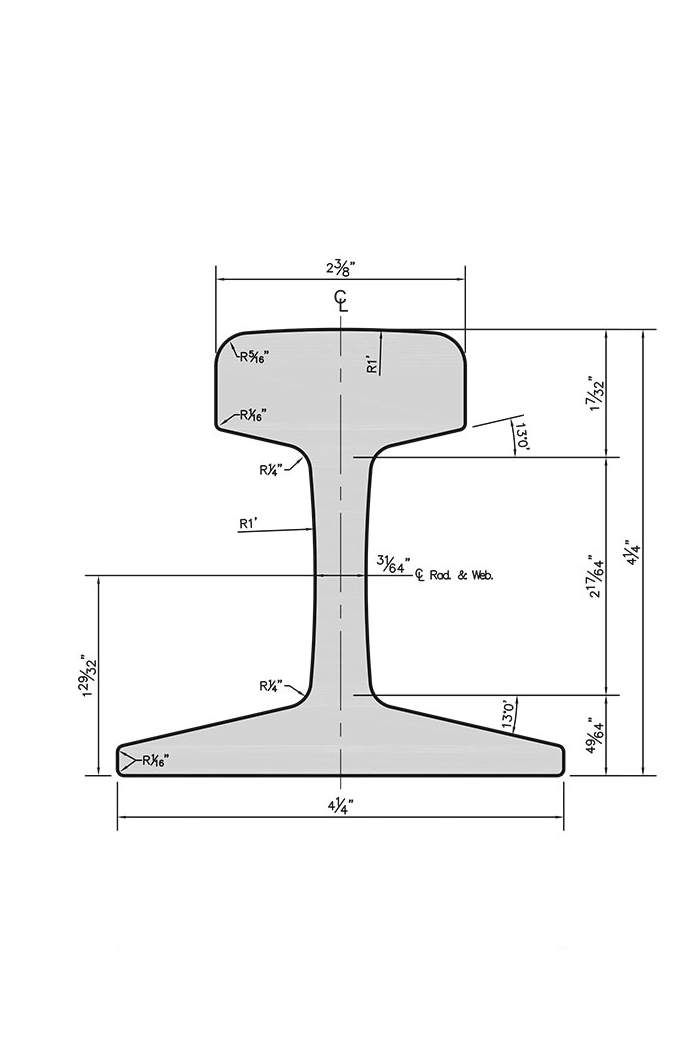

60# A.S.C.E.
Specs:
Standard stock lengths 20’, 30’, 33’ & 40’
Standard Drilling 2 1/2” X 5”
Joint Bars 13 lbs (with hardware)
Bolt 3/4” diameter
Standard Fasteners
Hook Bolt 3/4”
Clip #106
Physical Properties:
Sectional Area
5.93”
Moment of Inertia
14.60”
Neutral Axis, Y
2.05”
Section Modulus
Head: 6.60”
Base: 7.10”
Chemical Properties:
Carbon
.50 to .70
Manganese
.60 to 1.00
Phosphorus
.045 max
Sulfur
.05 max
Silicon
.07 to .50

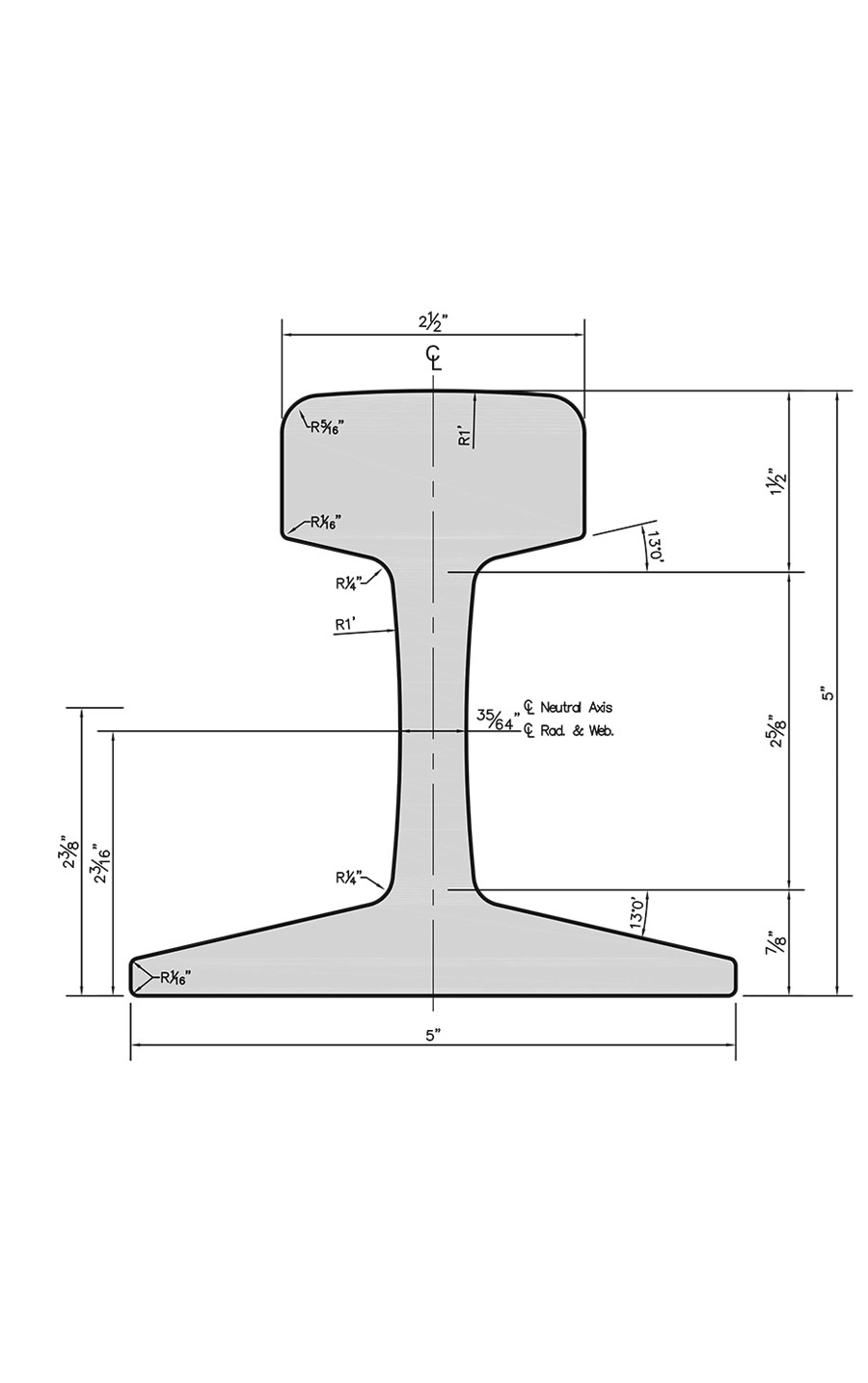

80# A.S.C.E.
Specs:
Standard Drilling 2 1/2” X 5”
Joint Bars 30 lbs (with hardware)
Bolt 7/8” diameter
Standard Fasteners
Hook Bolt 7/8”
Clip #106
Physical Properties:
Sectional Area
7.86”
Moment of Inertia
26.40”
Neutral Axis, Y
2.38”
Section Modulus
Head: 10.10”
Base: 11.08”
Chemical Properties:
Carbon
.55 to .68
Manganese
.60 to .90
Phosphorus
.040 max
Sulfur
.05 max
Silicon
.10 to .50

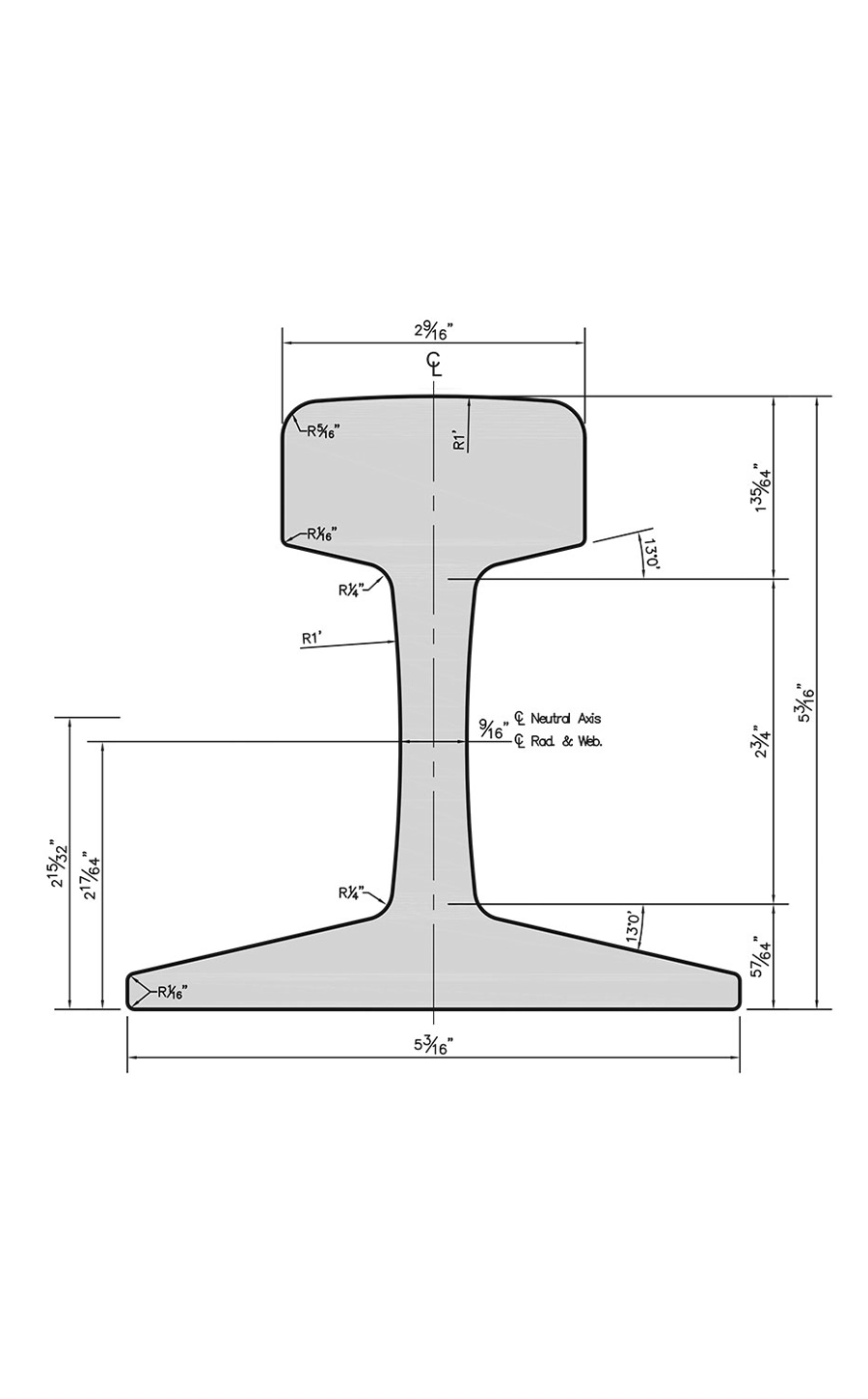

85# A.S.C.E.
Specs:
Standard stock lengths 33’, 39‘ & 40’
Standard Drilling 2 1/2” X 5”
Joint Bars 30 lbs (with hardware)
Bolt 7/8” diameter
Standard Fasteners
Hook Bolt 7/8”
Clip #106 or #62
Physical Properties:
Sectional Area
8.33”
Moment of Inertia
30.10”
Neutral Axis, Y
2.47”
Section Modulus
Head: 11.10”
Base: 12.17”
Chemical Properties:
Carbon
.70 to .80
Manganese
.70 to 1.00
Phosphorus
.0.5 max
Sulfur
.04 max
Silicon
.10 to .50
CRANE Rail (104# – 175#)
Purpose-built for the concentrated wheel loads of overhead cranes, these heavy sections feature a wide, thick head and stout profile engineered to resist wear in demanding service. Ideal for high capacity runways in steel mills, foundries, ports, and heavy manufacturing, crane rail stands up to the punishment that would quickly wear standard track rail.

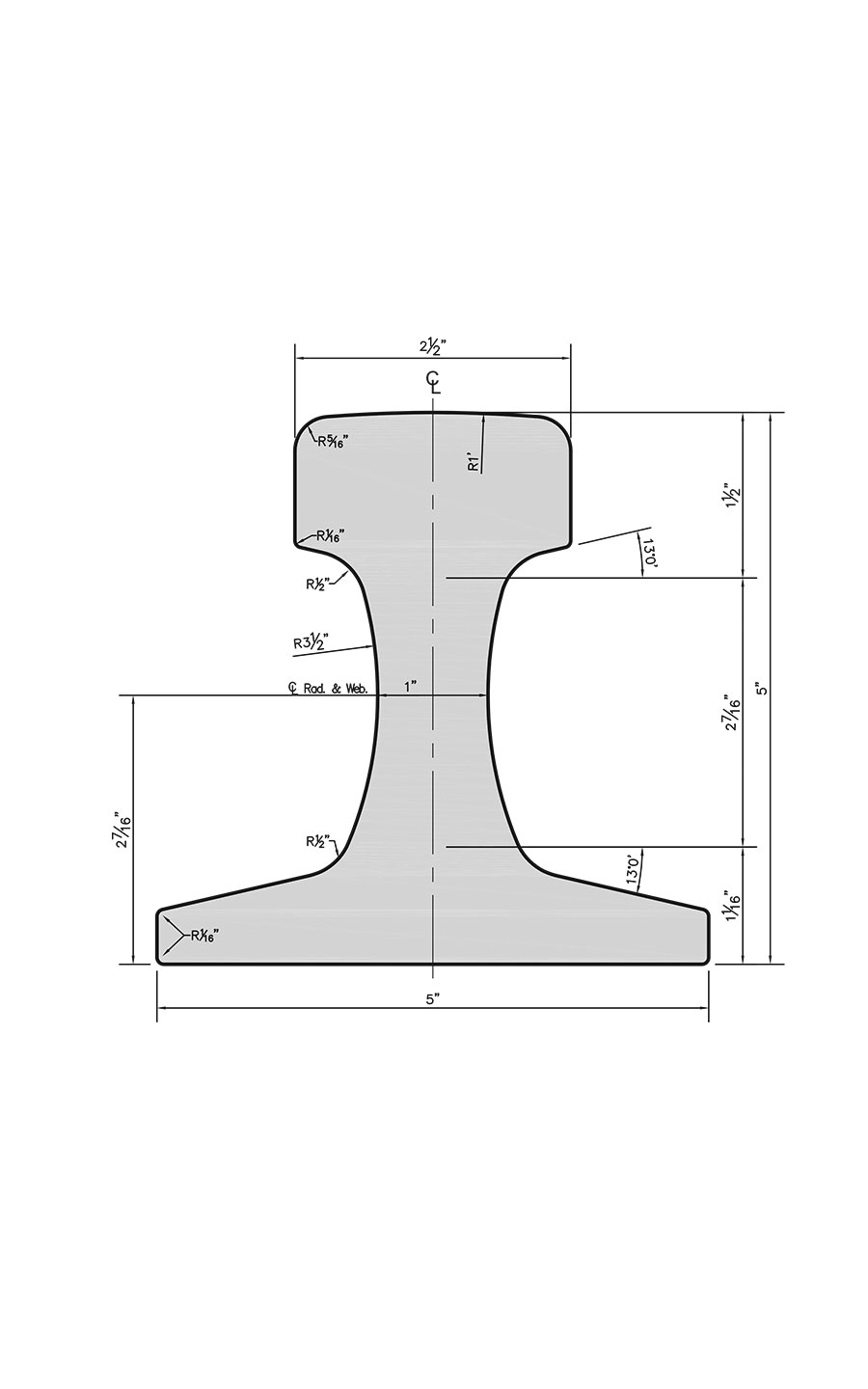

104# CRANE
Specs:
Standard stock lengths 39’
Standard Drilling 4” X 5” X 6”
Joint Bars 54 lbs (with hardware)
Bolt 1”
Standard Fasteners
Hook Bolt 1”
Clip #62
Physical Properties:
Sectional Area
10.30”
Moment of Inertia
29.80”
Neutral Axis, Y
2.21”
Section Modulus
Head: 10.70”
Base: 13.50”
Chemical Properties:
Carbon
.67 to .84
Manganese
.70 to 1.00
Phosphorus
.04 max
Sulfur
.05 max
Silicon
.10 to .30

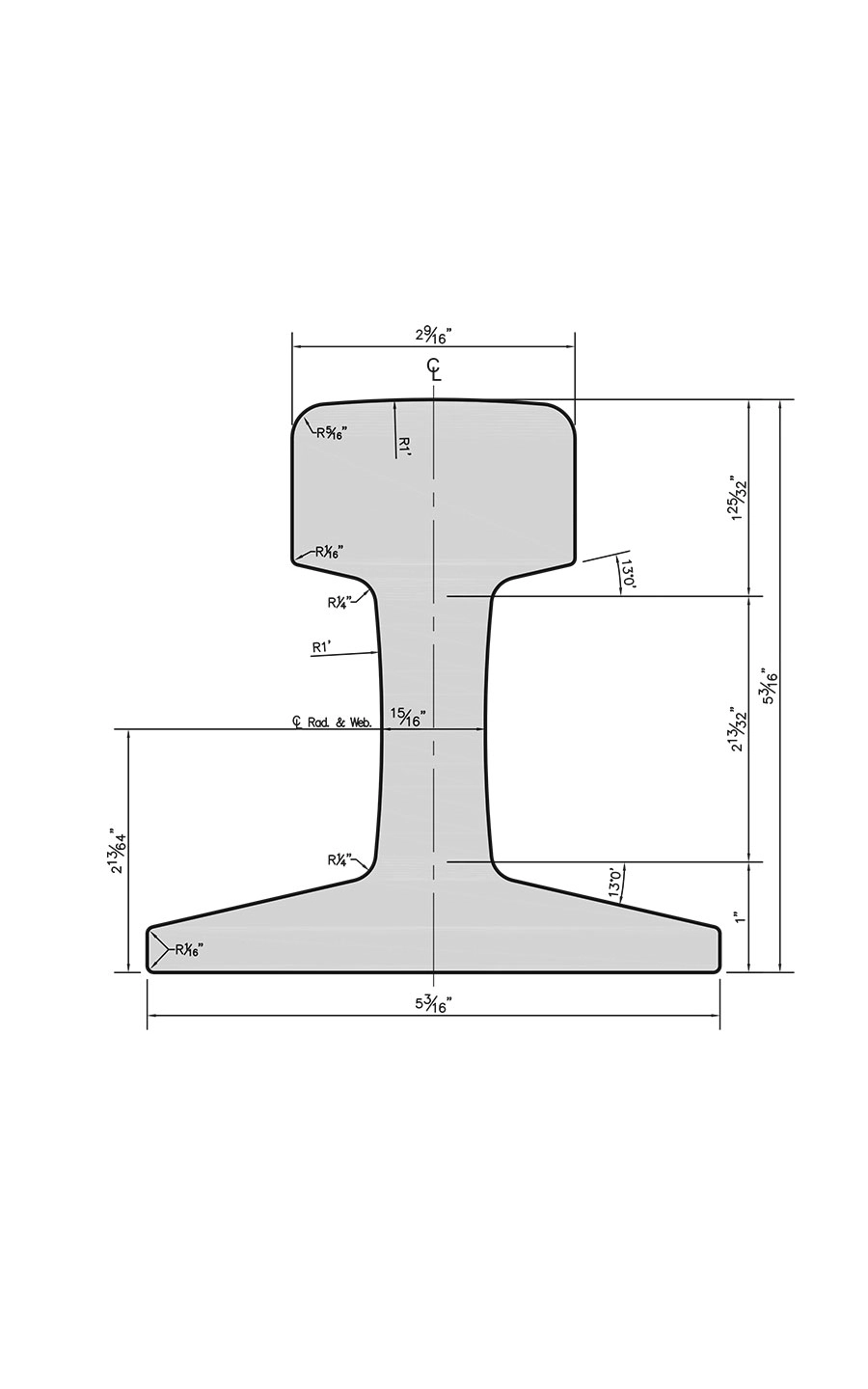

105# CRANE
Specs:
Standard stock lengths 39’
Standard Drilling 4” X 5” X 6”
Joint Bars 66 lbs (with hardware)
Bolt 1”
Standard Fasteners
Hook Bolt 1”
Clip #62
Physical Properties:
Sectional Area
10.30”
Moment of Inertia
34.40”
Neutral Axis, Y
2.41”
Section Modulus
Head: 12.40
Base: 14.30”
Chemical Properties:
Carbon
.67 to .84
Manganese
.70 to 1.00
Phosphorus
.04 max
Sulfur
.05 max
Silicon
.10 to .30

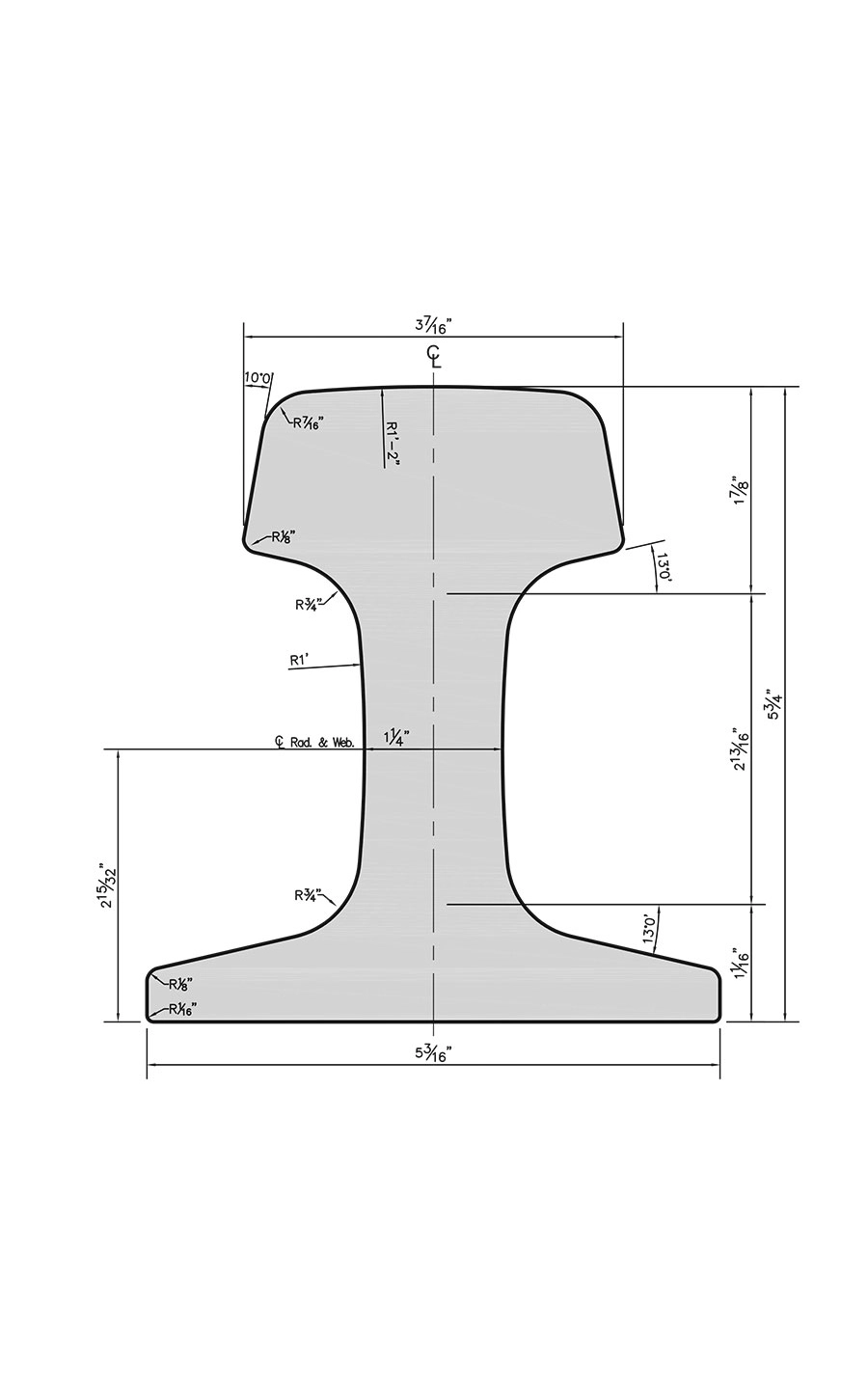

135# CRANE
Specs:
Standard stock lengths 39’
Standard Drilling 4” X 5” X 6”
Joint Bars 82 lbs (with hardware)
Bolt 1”
Standard Fasteners
Hook Bolt 1”
Clip #62
Physical Properties:
Sectional Area
13.30”
Moment of Inertia
50.60”
Neutral Axis, Y
2.81”
Section Modulus
Head: 17.20
Base: 18.00”
Chemical Properties:
Carbon
.67 to .84
Manganese
.70 to 1.00
Phosphorus
.04 max
Sulfur
.05 max
Silicon
.10 to .30

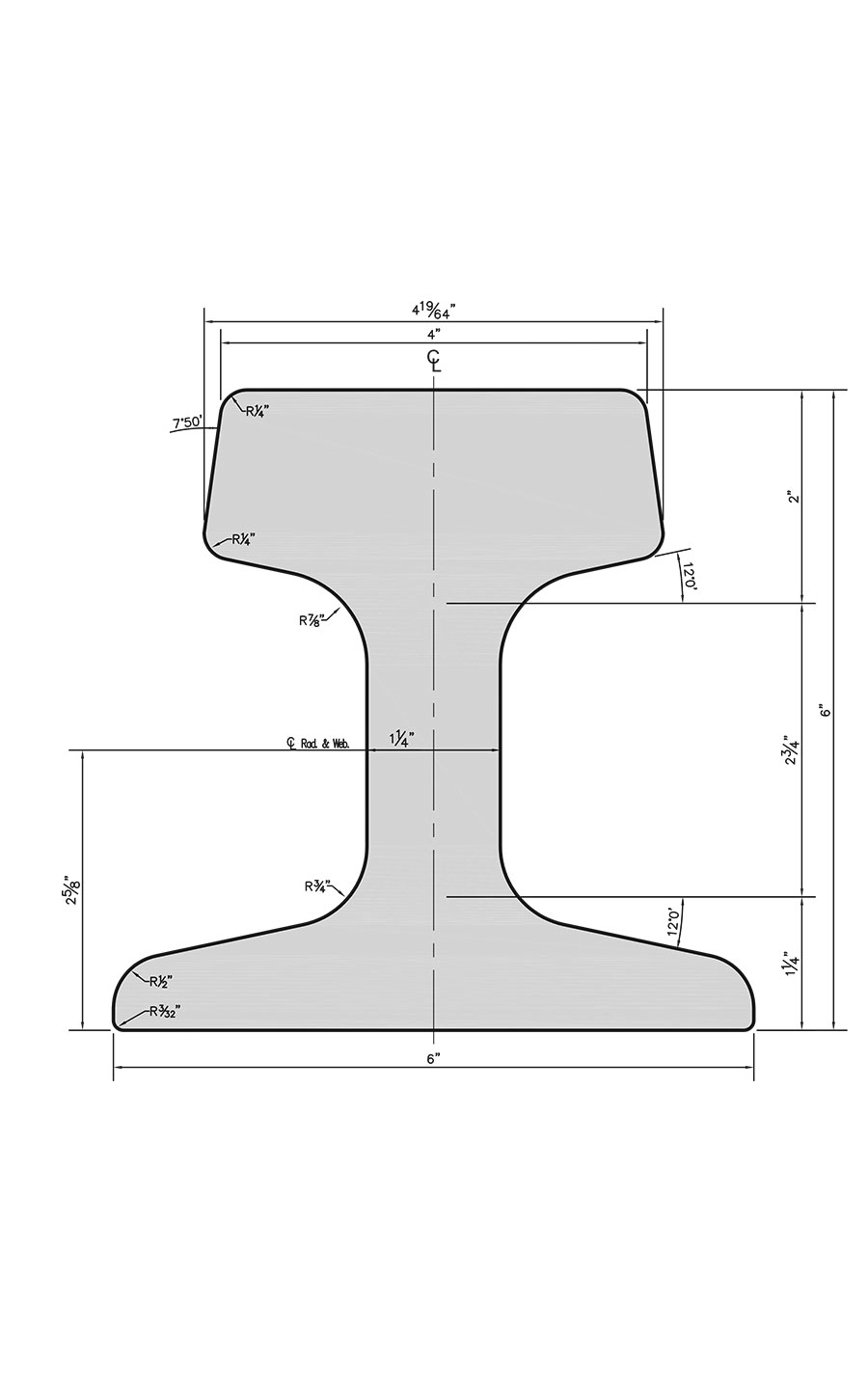

171# CRANE
Specs:
Standard stock lengths 39’
Standard Drilling 4” X 5“ X 6”
Joint Bars 82 lbs (with hardware)
Bolt 1”
Standard Fasteners
Hook Bolt 1”
Clip #171
Physical Properties:
Sectional Area
16.80”
Moment of Inertia
73.40”
Neutral Axis, Y
3.01”
Section Modulus
Head: 24.50”
Base: 24.40”
Chemical Properties:
Carbon
.67 to .84
Manganese
.70 to 1.00
Phosphorus
.04 max
Sulfur
.05 max
Silicon
.10 to .30

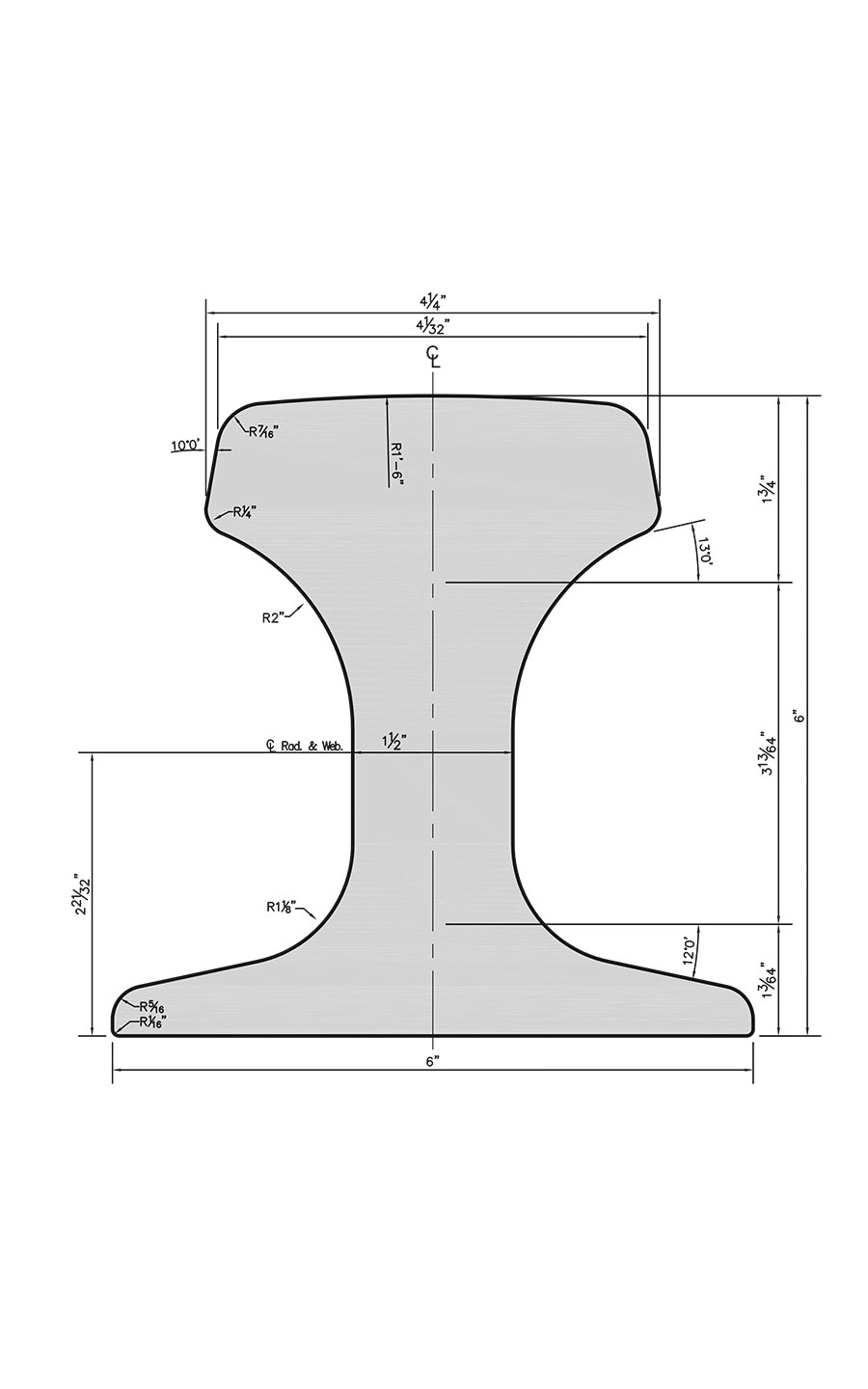

175# CRANE
Specs:
Standard stock lengths 39’
Standard Drilling 4” X 5“ X 6”
Joint Bars 92 lbs (with hardware)
Bolt 1”
Standard Fasteners
Hook Bolt 1”
Clip #175
Physical Properties:
Sectional Area
17.10”
Moment of Inertia
70.20”
Neutral Axis, Y
3.02”
Section Modulus
Head: 23.50”
Base: 23.30”
Chemical Properties:
Carbon
.67 to .84
Manganese
.70 to 1.00
Phosphorus
.04 max
Sulfur
.05 max
Silicon
.10 to .30
A Type Rail (A45 – A120)
Built to the European DIN 536 standard, these crane rails are measured by head width in millimeters and are engineered for equipment designed to run on metric profiles. Often hard to find from domestic suppliers, the A series is the go-to choice for imported machinery, port equipment, and cranes built to European specifications.

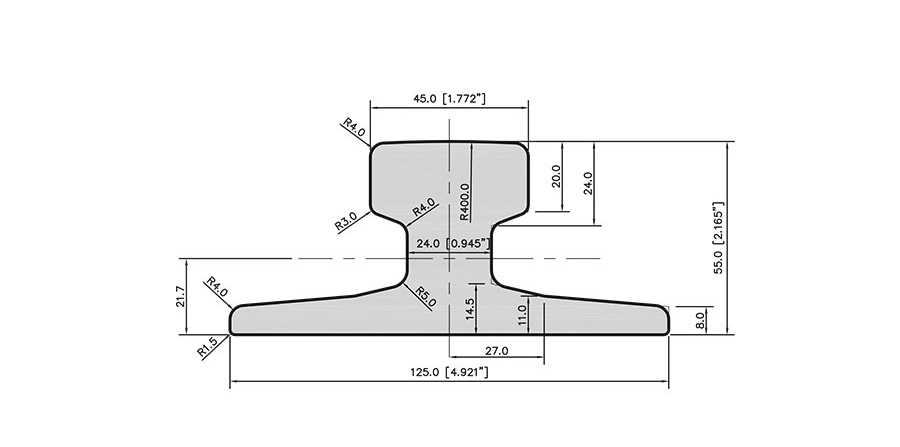

A 45
Specs:
Standard stock lengths 12 m
Standard Fasteners
Clip #106
Custom Clamp & Filler
A 55

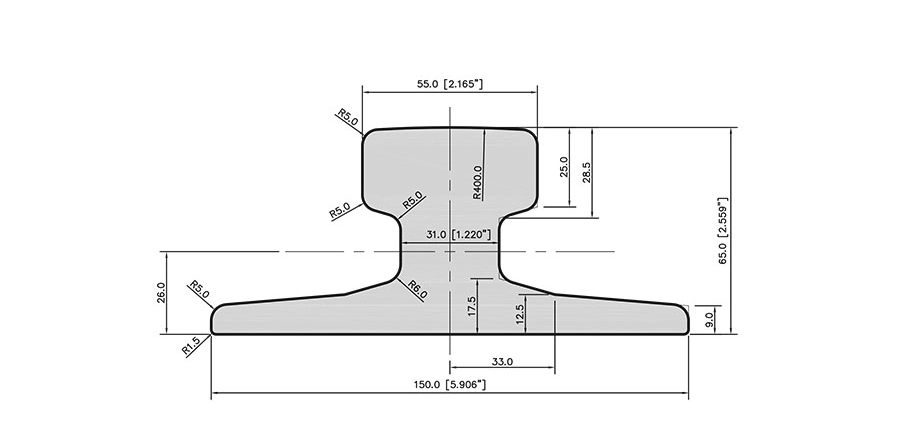

Specs:
Standard stock lengths 12 m
Standard Fasteners
Clip #106
Custom Clamp & Filler

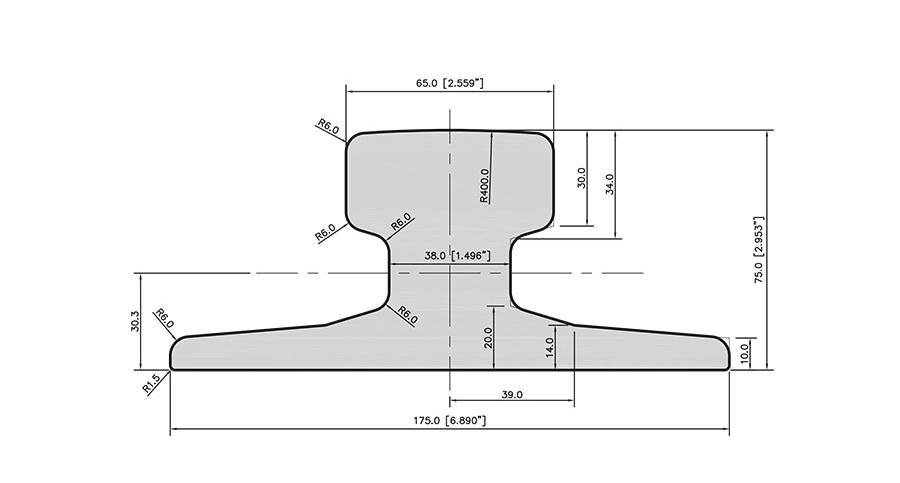

A 65
Specs:
Standard stock lengths 12 m
Standard Fasteners
Custom Clamp & Filler

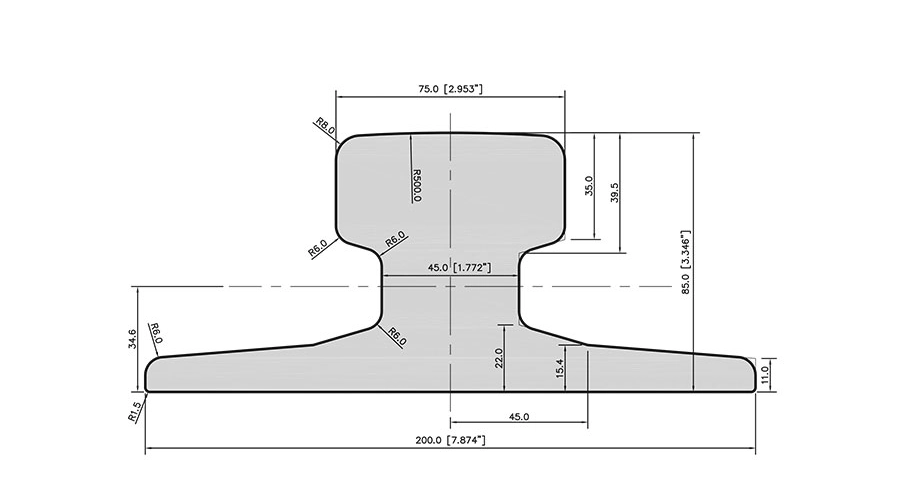

A 75
Specs:
Standard stock lengths 12 m
Standard Fasteners
Custom Clamp & Filler

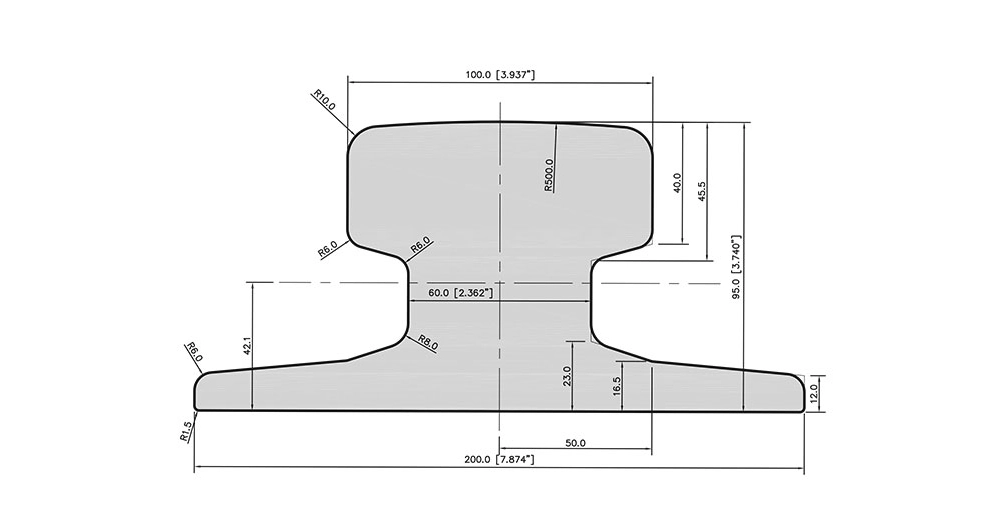

A 100
Specs:
Standard stock lengths 12 m
Standard Fasteners
Custom Clamp & Filler

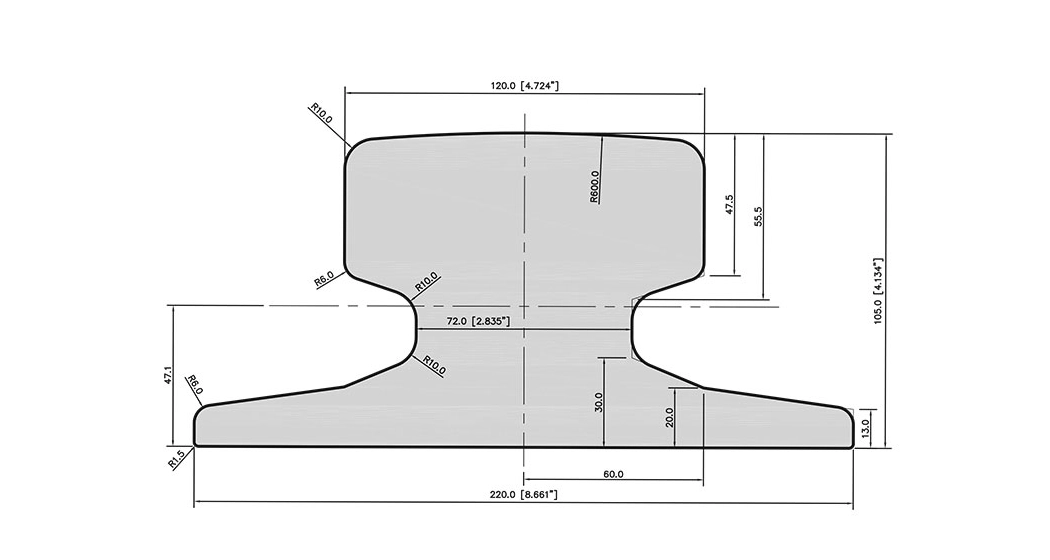

A 120
Specs:
Standard stock lengths 12 m
Standard Fasteners
Custom Clamp & Filler
