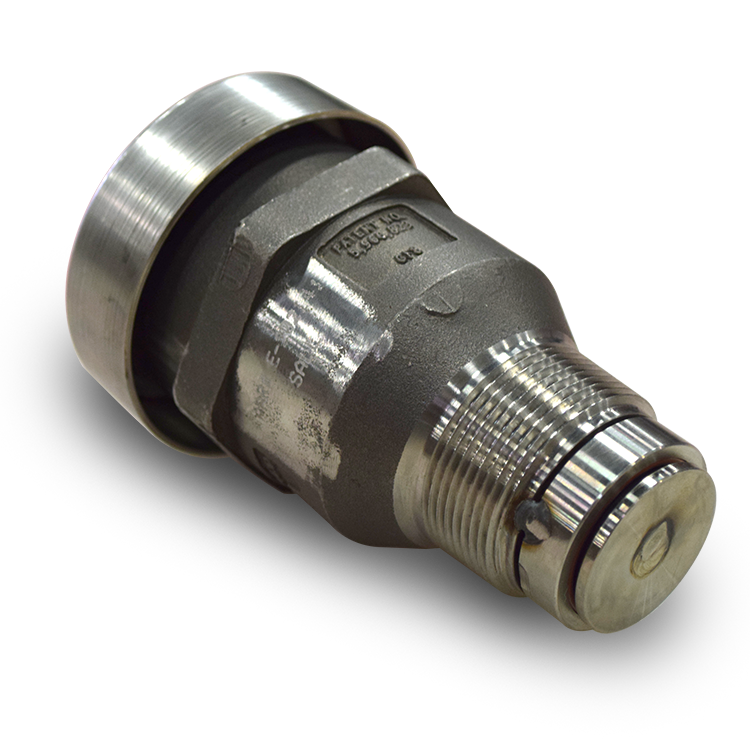

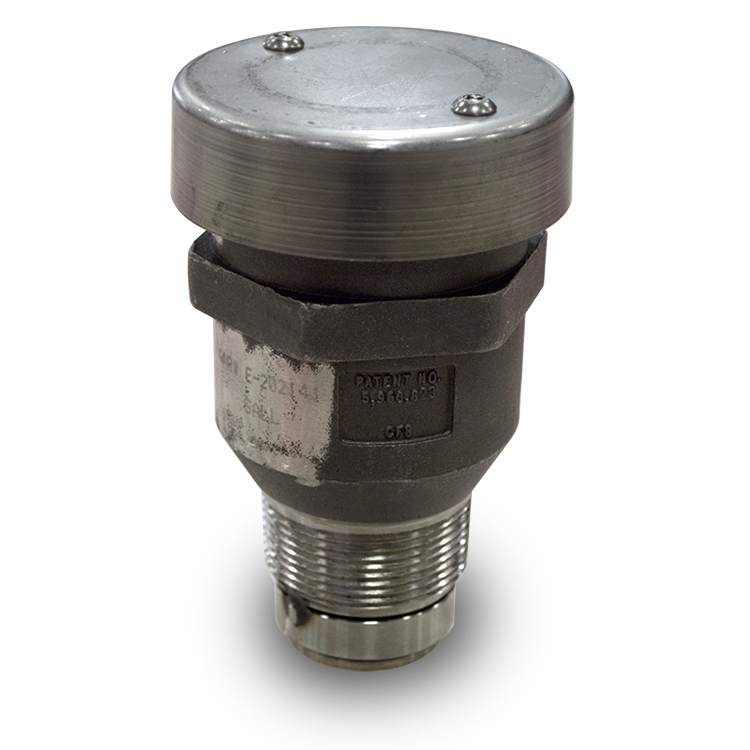

Vacuum Relief Valve 1 1/2-inch Threaded
304 SS, Black Viton GF-600S Gasket, -.75psi, Non Cycling, AAR Approval # E-202141
CAD Drawing
Download CADKey features
Threaded and flanged styles available with additional options such as filter screen and tamper evident caps.
Cap and stem function independently.
Non-cycling feature prevents valve from activating / cycling and product release in case of rollover derailment.
Available in 1 1/2-inch and 2 1/2-inch sizes.
Full-faced gasket prevents failure from positive pressure.
Standard gasket materials: Buna-N, EPDM, Neoprene, Viton A.
Other gasket materials available upon request.
AAR Approval # E-009034.
Flanged and Tamper Evident styles also available.
Specifications
AAR Approval
AAR Approval: E-202141
