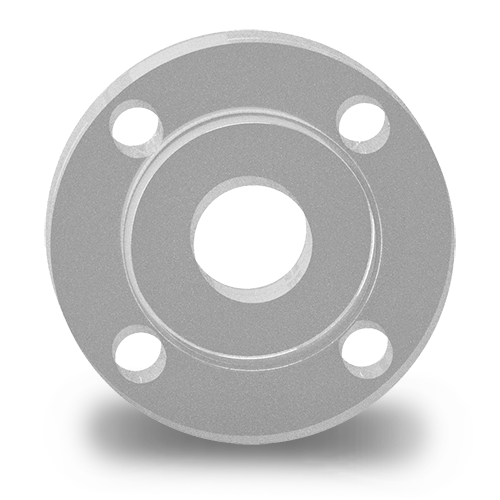

Sight Glass Flange Blank 2″
Clear Acrylic, 2″ Thick, (4) 3/4″ Bolt Holes on 4 3/4″ Bolt Circle
CAD Drawing
Download CADKey features
Confirm product flow during transfer applications with reliable, durable Sight Glass Flanges from Hazarsolve.

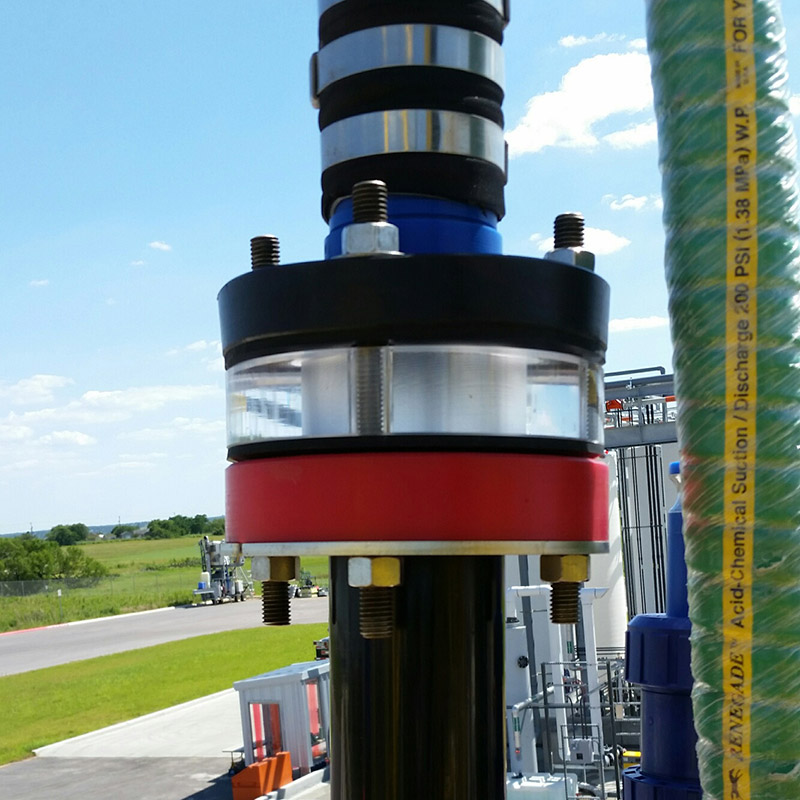

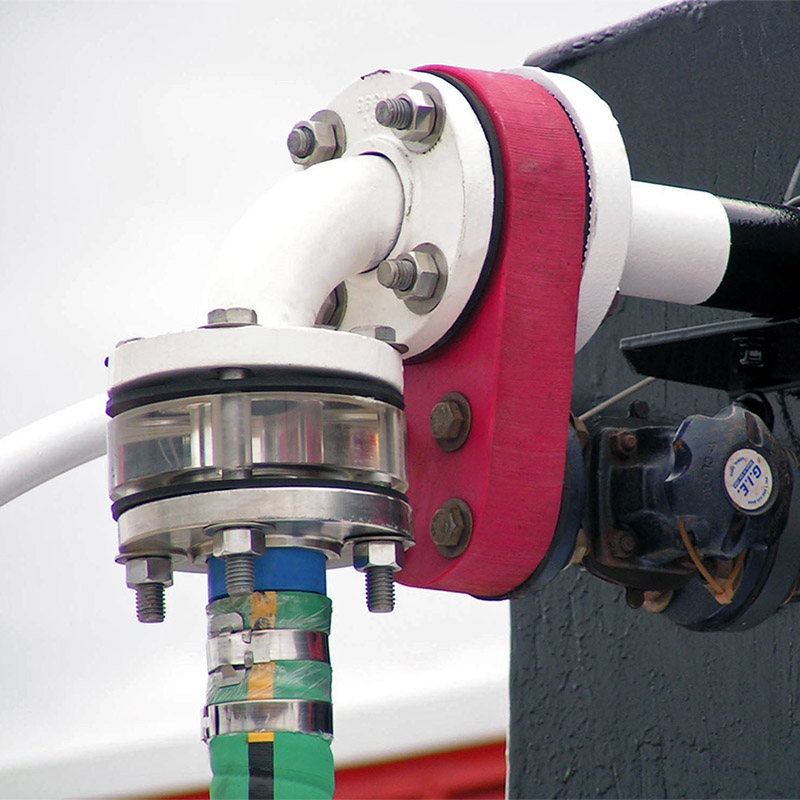

Inline view of product transfer.
Constructed of polished acrylic.
Raised face which prevents stress and or premature cracking.
Available in TTMA and ANSI bolt patterns.
Available in 2-inch to 8-inch.
