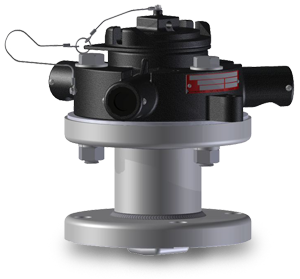

Quick Inspect Safety Vent w/ Flange
Black Noryl, White FDA Nitrile Gasket, White Noryl Surge Protector, 316 SS Flange 8 3/8-inch Tall, (4) 3/4-inch Bolt Holes on 6 1/4-inch Bolt Circle w/ White Nitrile Gasket, AAR Approval # PRD-162102, SS Rupture Disc Sold Separately
CAD Drawing
Download CADKey features
Chemical and weather resistant lightweight rupture disk holders.
AAR approved.
Accepts standard rupture disk styles.
Threaded closures allow easy access for rupture disk inspection and cleaning.
A choice of body material options to accommodate any service.
Noryl or Stainless Steel.
Sold with or without a surge protector. Material options include Noryl, Ryton, Stainless Steel and Salco Polyethylene.
Specifications
AAR Approval
AAR Approval: PRD-162102
