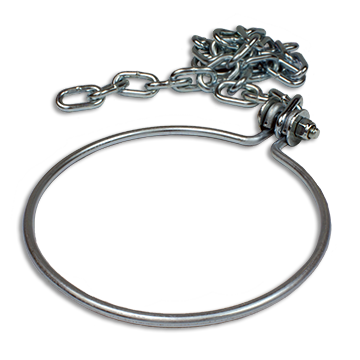

Pipe Shackle 5″
CS Z/P, CS Chain
CAD Drawing
Download CADSee also
Y-Pipe 5″
Y-Pipe 5″
304 SS, 2 Swivel Groove Ends, Male Adapter Middle Connection
Pressure Gauge 0-30 psi
Pressure Gauge 0-30 psi
Alum, 4 1/2" Face, 1/4" NPT Bottom Connection Accuracy ±0.5% Full Scale, ASME B40.100 Grade 2A
Discharge Lateral 5″
Discharge Lateral 5″
Alum, Groove x Plain Pipe, Flange Middle Connection, (6) 9/16" Bolt Holes on 7 7/8" Bolt Circle, 14 3/16" Long
