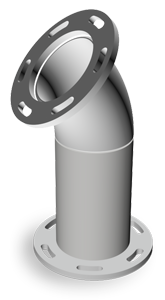

PD Air Pipe Assembly 5"x45°

PD Air Pipe Assembly 5"x45° - Image 2

Part #: PD5ADP01

PD Air Pipe Assembly 5″x45°

Alum, Flange x Flange, (6) 9/16″ Slotted Bolt Holes on 7 1/2″ Bolt Circle, Schedule 40

Default CAD icon

CAD Drawing
