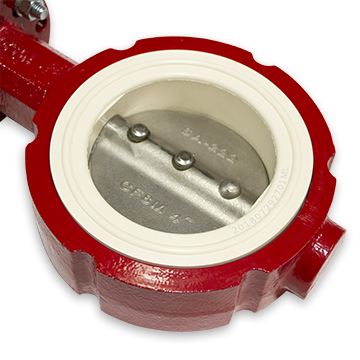

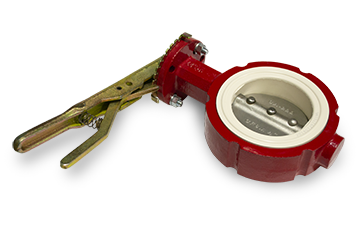

Butterfly Valve 4-inch
Cast Iron Body, SS Disc, SS Stem,

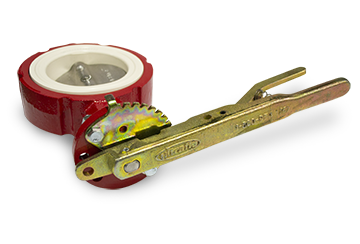

White FDA Nitrile Seat, w/ Handle
CAD Drawing
Download CADSpecifications
Car Type
PD Car
Manufacturer
Bray
Material
Cast Iron
Size
4"
Valve Type
Butterfly
