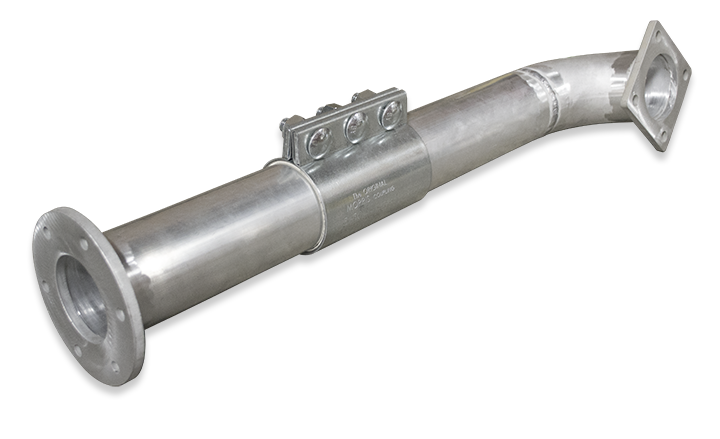

PD Air Pipe Assembly 3"x90°

PD Air Pipe Assembly 3"x90° - Image 2

Part #: PD3A90F02

PD Air Pipe Assembly 3″x90°

Alum, Flange x Flange, (4) 9/16″ Holes on 5″ Bolt Circle, (6) 1/2″ Bolt Holes on 4 7/8″ Bolt Circle, Schedule 40, Short Radius

Default CAD icon

CAD Drawing
