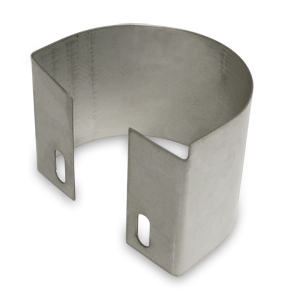

Pipe Shroud 3″
304 SS, 4″ Bracket Hole Distance
CAD Drawing
Download CADSee also
Round Flange 5″
Round Flange 5″
Alum, (6) 9/16" Bolt Holes on 7 7/8" Bolt Circle
Elbow 3″x90°
Elbow 3″x90°
Alum, Butt Weld x Round Flange, (6) 1/2" Bolt Holes on 4 7/8" Bolt Circle, Schedule 40, Short Radius
Swivel Groove Nipple 5″
Swivel Groove Nipple 5″
Alum, 2" Long, Schedule 40, Swivel Groove x Butt Weld
