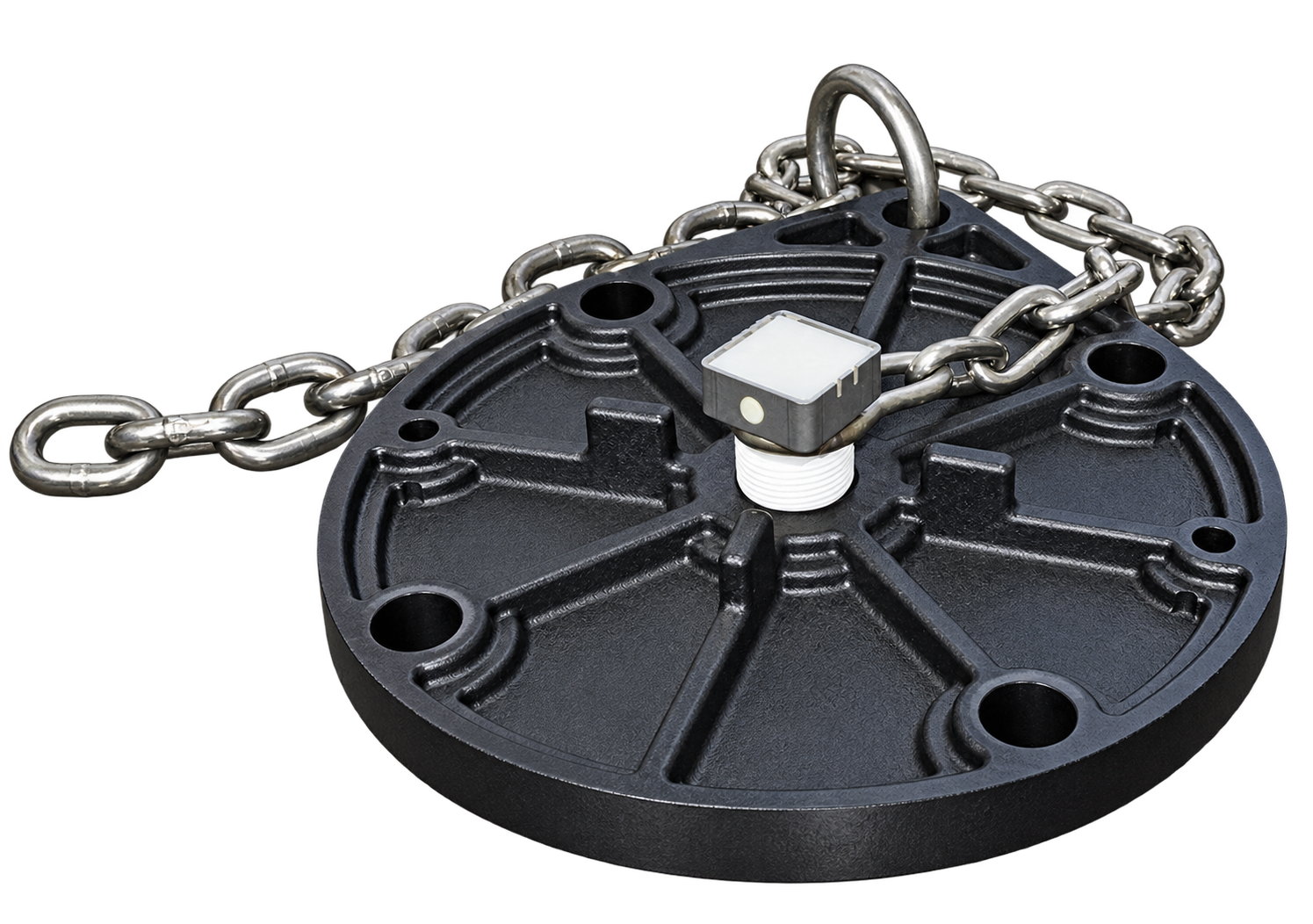

Non-Metal Blind Flange 6″, 1″ NPT Plug, 9 1/2″ Bolt Hole Diameter
Fits Standard 6″ Bottom Outlet, (4) 7/8″ Bolt Holes on 9 1/2″ Bolt Circle, Lightweight Non-Metal Construction, White FDA Nitrile Gasket, 1″ NPT Nylon Plug, CS and SS Chain
CAD Drawing
Download CADKey features
Prevents Leaks and Spills
Acts as a secondary barrier over the bottom outlet valve, helping guard against damage, non-accidental releases, and leaks or spills, even in the event of an accident or impact.
Lightweight, non-metal construction - reduces handling effort and operator strain during installation and removal.
Theft-deterrent design - black non-metal material discourages theft while maintaining a clean, durable appearance.
Secure 1-inch NPT nylon plug - available in multiple material options to fit customer needs.
Integrated chain and cable seal provisions - 12-inch carbon steel chain and cable seal points support a secure, tamper-evident installation.

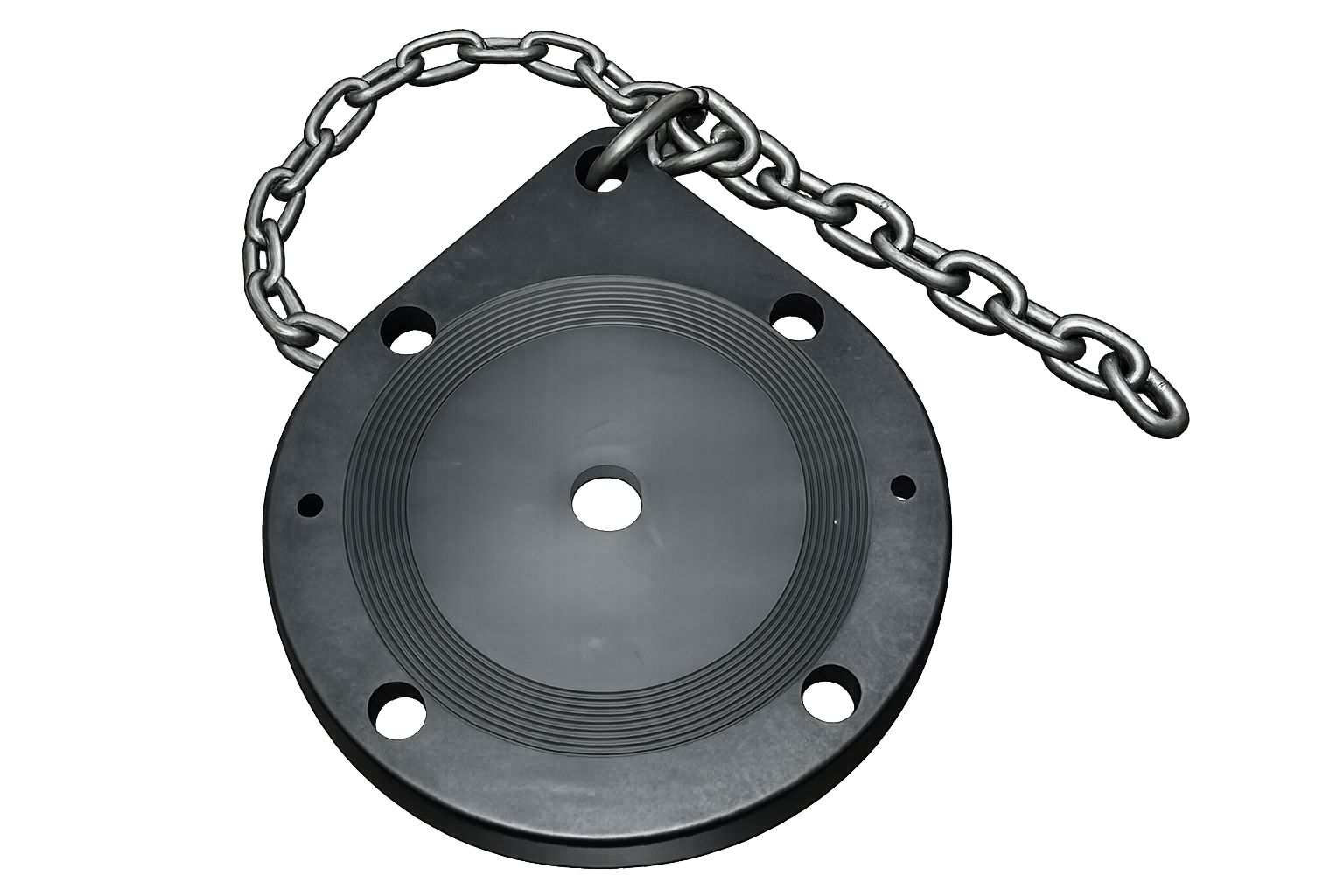

Raised-face sealing surface - delivers a dependable, tight seal between unloadings.
9.5-inch, 4-bolt circle - ensures consistent fit and easy installation.
AAR Approved (Approval #E262106)
Corn syrup service rated - engineered specifically for this application.
