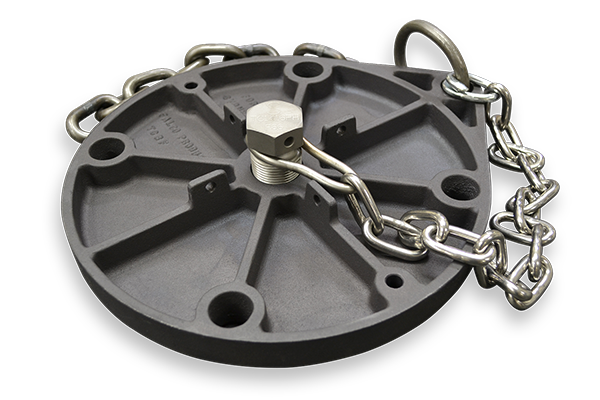

Blind Flange 6″, 416SS Plug, 4 7/8″ bolt hole diameter
Fits Standard 6″ Bottom Outlet, (4) 7/8″ Bolt Holes on 9 1/2″ Bolt Circle, Black Anodized Aluminum, White FDA Nitrile Gasket, 416 SS Plug, CS and SS Chain
CAD Drawing
Download CADKey features
Protect your bottom outlet valve between unloadings.
Light weight design reduces operator injury due to handling heavy, awkward steel designs.
Light weight 356 aluminum casting.
Black Anodized finished (theft deterrent and improved surface protection).
1" NPT plug in various materials - customer choice.
Integrated cable seal provisions and chain attachment point.
For Corn Syrup service.
Raised face sealing surface.
Ø9 1/2" Bolt Circle - 4 bolt.
