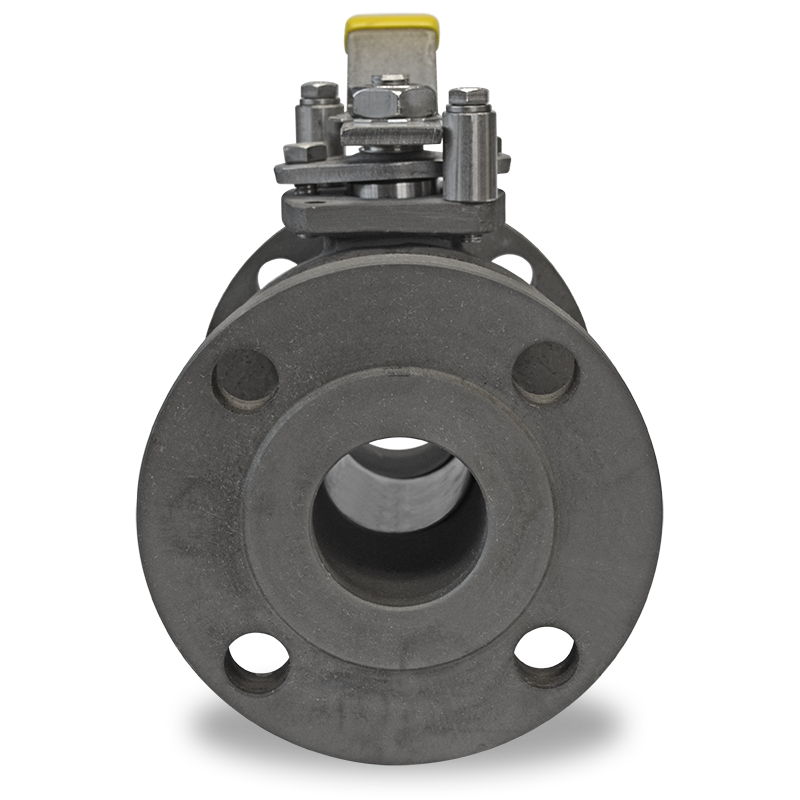

Ball Valve 2-inch Flanged
CS Body, 316 SS Ball & Stem, ANSI Class 150 lb Flanged, Full Port, AAR Approval #E152112
Key features
The valves are equipped with a grounded ball and stem.
The ball is vented in the stem slot to relieve body cavity pressure in the open position.
A heavy-duty 316 stainless steel gland plate mates with the packing gland to ssure secure, self-aligning compression of the packing.
Specifications
Car Type
Tank Car
Connection Type
Flanged
Manufacturer
Apollo
Material
Carbon Steel
Port
Full
Size
2"
Valve Type
Ball
AAR Approval
AAR Approval: E-152112
