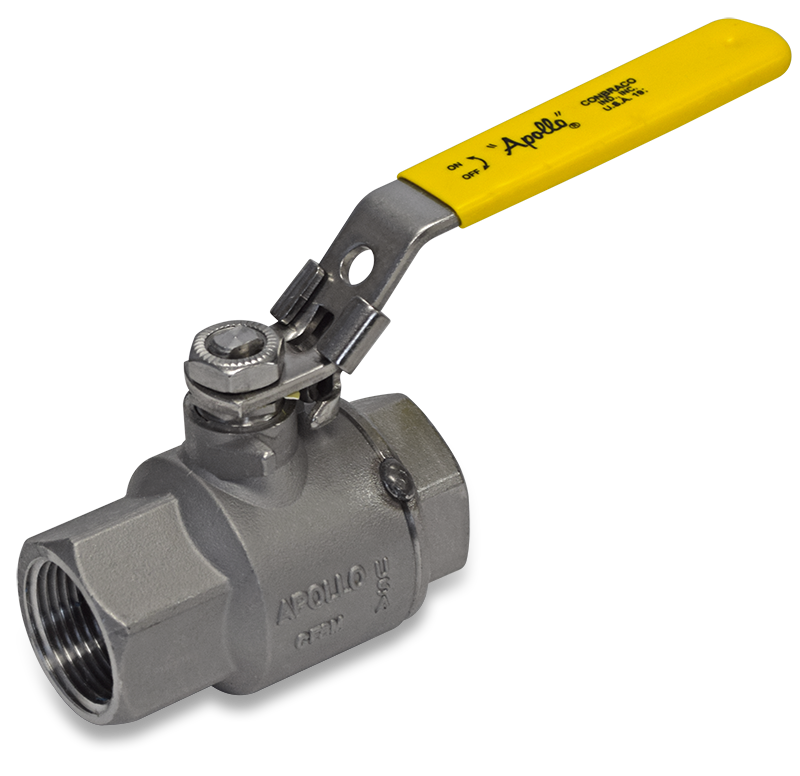

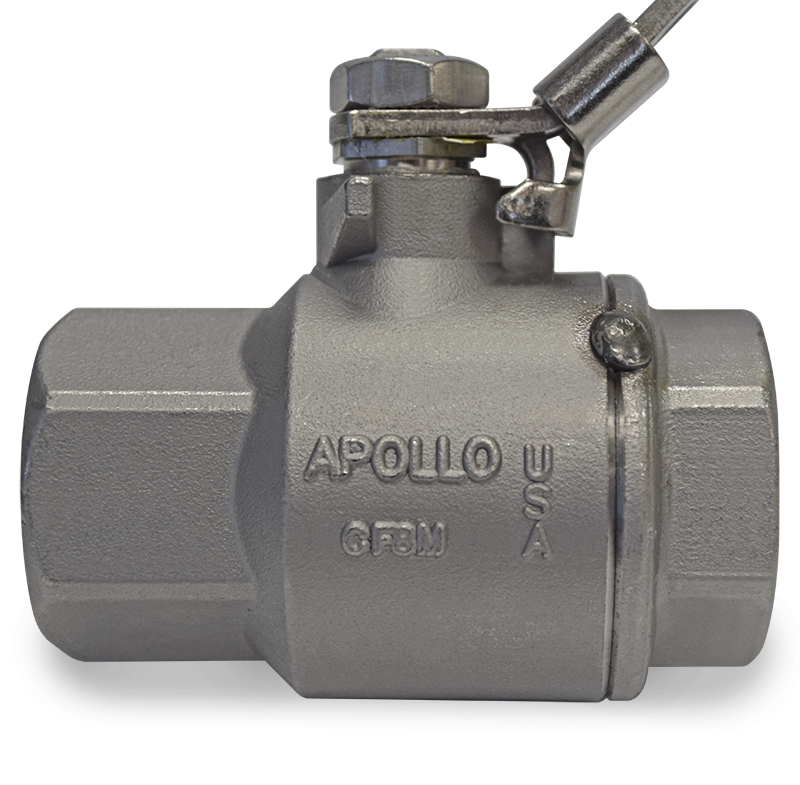

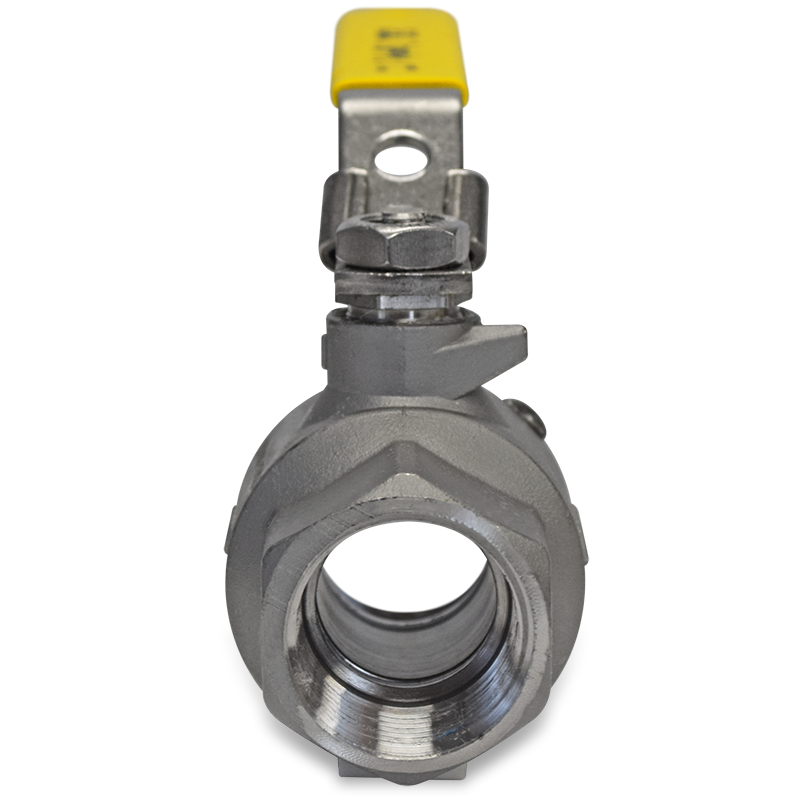

Ball Valve 1-inch Threaded
SS, Fire-Safe, Apollo, Full Port w/ Latch Lock Handle, AAR Approval # E202151
CAD Drawing
Download CADKey features
Apollo® 76 and 76F-A Series valves are two-piece investment cast ball valves that are in an ideal choice for transportation applications.
76F valves offer a full port design to maximize flow efficiency.
Sized from 1/4-inch to 3-inch, these valves feature threaded end connections and lever handles as standard.
Meets NACE MR-01-75 guidelines.
Apollo® 76-100-52 and 76F-100 Series ball valves feature an A351 CF8M stainless steel body and investment case components for high performance and extended service life.
They offer a blowout-proof stem design, adjustable packing gland, stainless steel lever and nut and RPTFE seats and stuffing box ring.
Specifications
AAR Approval
AAR Approval: E-202151
