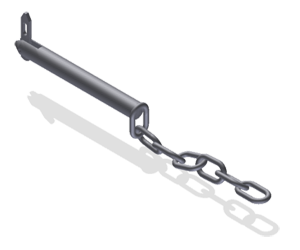

5/8 x 4-1/2-Inch Carbon Steel Seal Pin Assembly
Salco Products (SP62545CS) 5/8 x 4-1/2-Inch (5/8″x4 1/2″) Carbon Steel Seal Pin Assembly features a carbon steel seal pin that is 5/8-inch thick with 4-1/2-inches of usable length, and an overall length of 5-17/32-inches. The toggle (flapper) holds the pin in place, and features an elongated 3/16-inch seal hole. Welded to the end of the pin is 13 links of 3/16-inch, carbon steel, chain with a length of 12-inches.
CAD Drawing
Download CADKey features
Standard Seal Pins can be customized to your specifications.
Additional sizes in stock and available for immediate shipment.
Specifications
