Part #: TC4BCDI4A

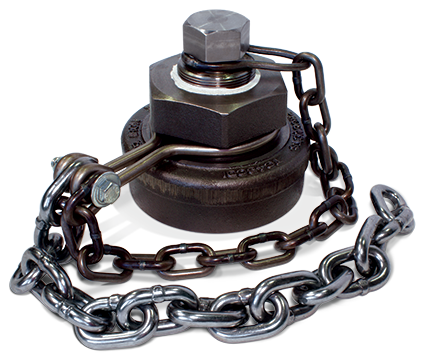

4-Inch Ductile Iron Bottom Outlet Cap with Black Neoprene Gasket and Carbon Steel Chain

The Salco Products (TC4BCDI4A) 4-Inch Ductile Iron Bottom Outlet Cap with Black Neoprene Gasket and Carbon Steel Chain is made out of ductile iron material with a 2-inch ductile iron plug. It fits a standard 5-1/4-inch railroad thread for application to any car manufacturer’s nozzle. Comes with 3/8-inch, carbon steel, chain with 16 links, a 4-inch, 304 stainless steel, lock ring, a 3/8 by 2-1/4-inch, zinc plated carbon steel, hex bolt, a 3/8-inch, zinc plated carbon steel, hex nut lock, 2 (two) 3/8-inch USS, zinc plated carbon steel flat washers, and s 3/8 by 3-1/2-inch zinc plated carbon steel S hook. This model includes an easily replaceable Black Neoprene gasket that has a 3-1/4-inch inner diameter and a 5-1/2-inch outer diameter.

Key features

Default Feature icon

AAR Approved.

Default Feature icon

Available in ductile iron or stainless steel.

Default Feature icon

Gasket material available in Buna-N, EPDM, Butyl, Viton A, and Neoprene (red, black, or white).

Default Feature icon

Available in a variety of bolt patterns to fit any style 4-inch ball valve.

Default Feature icon

Ask your Stucki representative about other gasket materials Stucki can provide.

Specifications

Cap Material
Ductile Iron
Gasket Material
Black Neoprene
Securement Material
Carbon Steel
Securement Type
Chain
