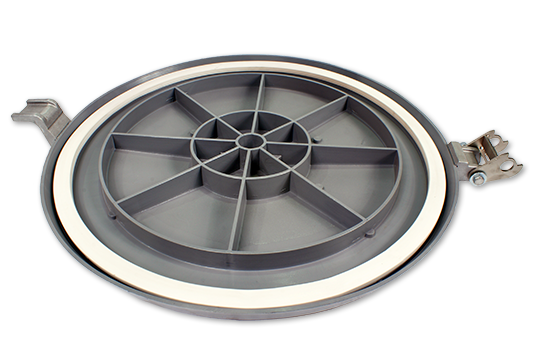

30-Inch Non-Vented Hatch Cover, Salco
Salco Products (PHC3007SAL) 30-Inch Non-Vented Hatch Cover is made out of HDPE material and includes a white FDA TPV gasket. Comes with an arm assembly that is made out of aluminum, and connected to the center of the hatch cover with 2 stainless steel bolts. Fits Salco’s hatch cover ring arrangement (HCR30A).
CAD Drawing
Download CADKey features
Lightweight HDPE. Significantly lighter than steel and fiberglass hatch covers at only 22 pounds.
UV stabilized material is effective in all climates and weather conditions.
Maximum protection. A full half-inch deflection on the gasket provides a uniform seal around the circumference of the hatch cover.
Hardware available for all major car manufacturers.
Saves time, labor, and reduces accidents. When used with our vented covers, no workers are required on the roof during unloading.
Reduce costs. No blasting, priming, lining or painting required.
Specifications
Resources
