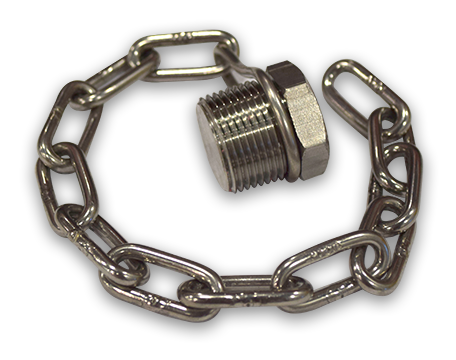

3/4-Inch Stainless Steel Plug Assembly with Stainless Steel Chain
Salco Products (TC0756PA) 3/4-inch Stainless Steel Plug Assembly with Stainless Steel Chain consists of a plug that has 3/4-inch NPT threads and is made out of 316 stainless steel material. The width across the flats of the head is 1.06-inches. Length of the thread is .63-inches with the overall length of the plug being 1.07-inches. Comes with a stainless steel chain assembly that consists of a 1/8-inch, 304 stainless steel, swivel link that is crimped around the plug, and is connected to a 1/8-inch, 18-8 stainless steel, chain of 12 links.
CAD Drawing
Download CADKey features
1/4-Inch to 3-Inch sizes available.
Available in Carbon Steel, Nirtronic 60 and Stainless Steel.
Available with or without seal hole.
Chain assembly can be customized to any length.
Specifications
Body Material
316 Stainless Steel
Chain material
18-8 Stainless Steel
Seal Hole
No
Size
3/4"
Type
Plug
