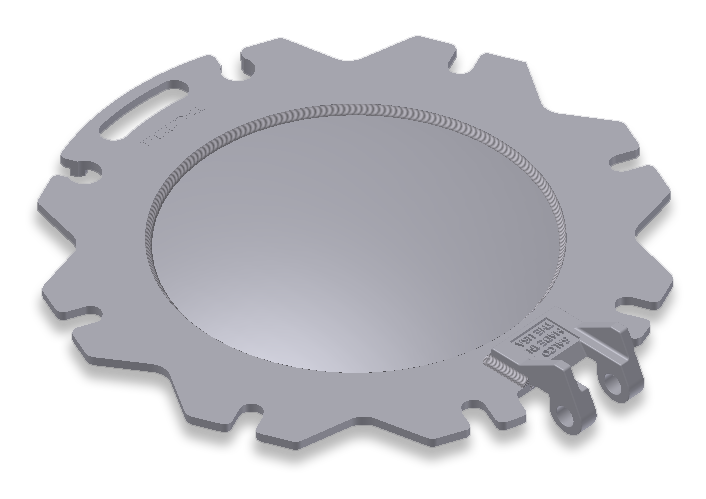

20-Inch 8 Bolt Stainless Steel Manway Cover, ACF Arrangement
Salco Products (TMC201311) 20-Inch 8 Bolt Stainless Steel Manway Cover with a Mill Finish features a 1/2-inch thick, 316L stainless steel, manway dome and carbon steel manway ring welded together. The manway has eight (8) 1-1/16-inch eye bolt slots on a 24-7/8-inch bolt circle with an AAR #1 style gasket groove. Also includes two (2) 304 stainless steel manway hinges, and 304 stainless steel manway safety stops. Length from the center of the manway cover to the center of the hinge bolt holes is 14.25-inches. Fits ACF OEM nozzle arrangement. AAR Approval # E-182113.
Key features
Salco's manway covers are available in both 6 and 8 bolt patterns and can be installed on most major manufacturers' tank cars.
ASTM A-36 Steel and 316L Stainless options with mill, satin or polished finish.
Fully customizable; can add threaded ports and safety vent bosses.
AAR Style #1 Gasket Groove.
Paintable; match your cars color.
Meets chemical/food grade service standards.
Works with the Salco Lift Assist device.
