2-Inch Flanged Stainless Steel Top Fitting Assembly

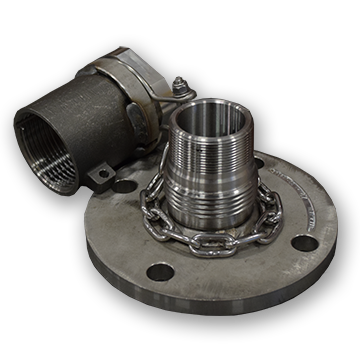

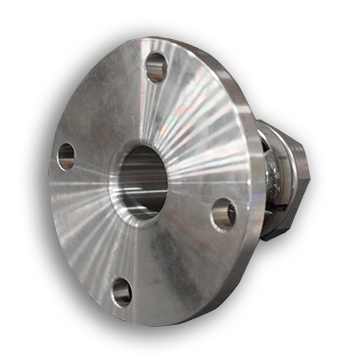

Salco Products (TE20S75DLP07A) 2-Inch Flanged Stainless Steel Top Fitting Assembly, fits an outlet with four (4) 1-inch bolt holes on a 7-1/2-inch bolt circle. The flange is made out of 316L stainless steel features a 2-inch male NPT and a 2-3/4-inch 6 UN -2A thread. The 2-inch quick connect thread on cap with wrench protector is made out of 316L stainless steel, and features slot cut in threads for pressure relief. Comes with 1/4-inch by 2-1/2-inch, 18-8 stainless steel, S-hook, a 304 stainless steel lock ring, two (2) 1/4-inch SAE, 18-8 stainless steel, flat washers, a 1/4-inch by 1-1/4-inch, 18-8 stainless steel, hex bolt, a 1/4-inch, 18-8 stainless steel, hex lock nut, and a 3/16-inch, 18-8 stainless steel, chain link with 14 links. Comes with a black Viton B dust cap gasket.
CAD Drawing
Download CADKey features
Provides direct connection to kam and groove or threaded hoses.
1", 2" and 3" sizes.
Dual Thread design has cap closure on separate threads, extending the life of the hose connection NPT by 50%.
Designed to provide a secure fitting that will minimize leaks and spills.
DOT (threaded) and AAR (kammed) approved designs.
Assemblies include adapter, cap, chain and gaskets.
Available in Stainless Steel or Ductile Iron.
416SS cap with 316SS adapter to prevent galling.
Contact your Salco Representative for the specific adapter types and sizes that will fit your needs.
