1 x 5-1/2-Inch Stainless Steel Eyebolt Assembly with Seal Hole and Safety Collar, Heavy Hex Nut

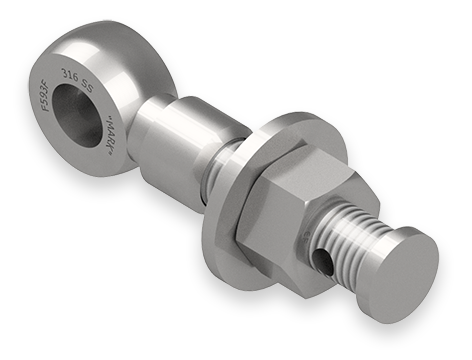

Salco Products (EB155XHAS6C) 1 x 5-1/2-Inch Stainless Steel Eyebolt Assembly with Seal Hole and Safety Collar, Heavy Hex Nut features a 316 stainless steel eyebolt that is 1-inch in diameter and 5-1/2-inches in length with a 13/32-inch seal hole. The eyebolt has 1-8 UNC -2A rolled threads with the length of 3-1/2-inches. The inner diameter of the eye is 15/16-inches, with the outer diameter being 2-inches. Includes a 1-inch, 416 stainless steel, heavy hex nut. A 1-inch, 316 stainless steel, flat washer with a 2-1/2-inch outer diameter, and a 1-inch, 304 stainless steel, eyebolt safety collar. There is a 1-inch, 304 stainless steel, ferrule stop at the end of the threads to prevent the heavy hex nut from coming off.
CAD Drawing
Download CADKey features
Fits most OEM Manway configurations.
Standard eyebolts can be customized to your specifications.
3/4-Inch to 1-Inch diameters available.
4-Inch to 7-Inch lengths available.
Variety of different safety mechanisms available.
Hex and square nuts available.
