1 x 4-1/2-Inch Carbon Steel Eyebolt Assembly with Pin and Seal Hole, Heavy Hex Nut

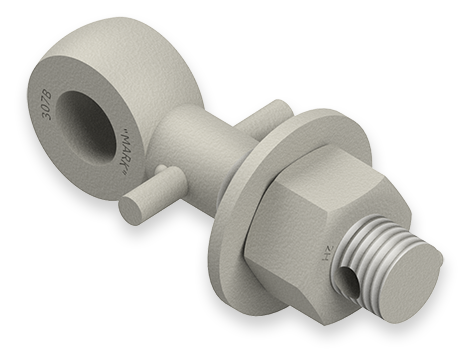

Salco Products (EB145XHAP) 1 x 4-1/2-Inch Carbon Steel Eyebolt Assembly with Pin and Seal Hole, Heavy Hex Nut features a ASTM A307 Grade B carbon steel eyebolt that is 1-inch in diameter and 4-1/2-inches in length with a 3/8-inch x 2-1/2-inch carbon steel pin, and a 13/32-inch seal hole. The eyebolt has 1-8 UNC -2A rolled threads with the length of 2-1/2-inches. The inner diameter of the eye is 15/16-inches, with the outer diameter being 2-inches. Includes a 1-inch, ASTM A194 Grade 2H carbon steel, heavy hex nut. A 1-inch, carbon steel, flat washer with a 2-1/2-inch outer diameter. There is a bead of weld at the end of the threads to prevent the heavy hex nut from coming off.
CAD Drawing
Download CADKey features
Fits most OEM Manway configurations.
Standard eyebolts can be customized to your specifications.
3/4-Inch to 1-Inch diameters available.
4-Inch to 7-Inch lengths available.
Variety of different safety mechanisms available.
Hex and square nuts available.
