1/2 x 3-1/2-Inch Stainless Steel Seal Pin Assembly

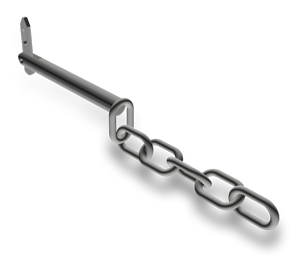

Salco Products (SP5035SS) 1/2 x 3-1/2-Inch (1/2″x3-1/2″) Stainless Steel Seal Pin Assembly features a 304 stainless steel seal pin that is 1/2-inch thick with 3-1/2-inches of usable length, and an overall length of 4-17/32-inches. The toggle (flapper) holds the pin in place, and features an elongated 3/16-inch seal hole. Welded to the end of the pin is 13 links of 3/16-inch, 18-8 stainless steel, chain with a length of 12-inches.
CAD Drawing
Download CADKey features
Standard Seal Pins can be customized to your specifications.
Additional sizes in stock and available for immediate shipment.
Specifications
