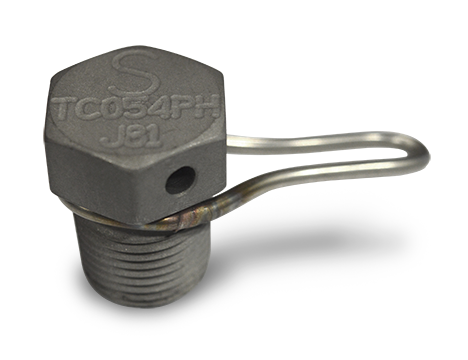

1/2-Inch Stainless Steel Plug with Stainless Steel Swivel Link
Salco Products (TC054PA) 1/2-inch Stainless Steel Plug with Stainless Steel Swivel Link consists of a plug has 1/2-inch NPT threads, and is made out of 316 stainless steel material. It features a .188-inch seal hole drilled through the head. The width across the flats of the head is 1-inch. Length of the thread is .63-inches with the overall length of the plug being 1.34-inches. Comes with a 1/8-inch, 18-8 stainless steel, swivel link that is crimped around the plug.
CAD Drawing
Download CADKey features
1/4-Inch to 3-Inch sizes available.
Available in Carbon Steel, Nirtronic 60 and Stainless Steel.
Available with or without seal hole.
Chain assembly can be customized to any length.
Specifications
Body Material
316 Stainless Steel
Seal Hole
No
Size
1/2"
Type
Plug
