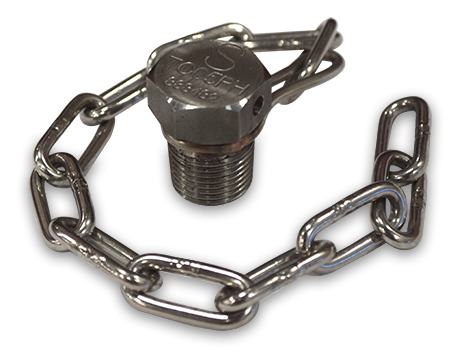

1/2-Inch Carbon Steel Plug Assembly with Stainless Steel Chain
Salco Products (TC05PAH2) 1/2-inch Carbon Steel Plug Assembly with Stainless Steel Chain consists of a plug that has 1/2-inch NPT threads, and is made out of carbon steel material. It features a .188-inch seal hole drilled through the head. The width across the flats of the head is 1-inch. Length of the thread is .63-inches with the overall length of the plug being 1.34-inches. Comes with a stainless steel chain assembly that consists of a 1/8-inch, 304 stainless steel, swivel link that is crimped around the plug, and is connected to a 1/8-inch, 18-8 stainless steel, chain of 12 links.
CAD Drawing
Download CADKey features
1/4-Inch to 3-Inch sizes available.
Available in Carbon Steel, Nirtronic 60 and Stainless Steel.
Available with or without seal hole.
Chain assembly can be customized to any length.
