Part #: TC15PA

1-1/2-Inch Carbon Steel Plug Assembly with Carbon Steel Chain

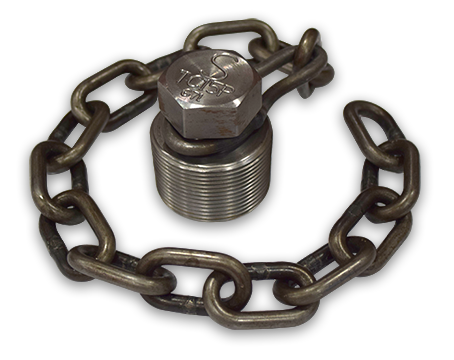

Salco Products (TC15PA) 1-1/2-inch Carbon Steel Plug Assembly with Carbon Steel Chain consists of a plug has 1-1/2-inch NPT threads, and is made out of carbon steel material. The width across the flats of the head is 1-3/8-inches. Length of the thread is 1.25-inches with the overall length of the plug being 2.25-inches. Comes with a carbon steel chain assembly that consists of a 1/4-inch, carbon steel, swivel link that is crimped around the plug, and is connected to a 1/4-inch, carbon steel, chain of 15 links with an approximate length of 19-inches.

Default CAD icon
CAD Drawing
Download CAD

Key features

Default Feature icon

1/4-Inch to 3-Inch sizes available.

Default Feature icon

Available in Carbon Steel, Nirtronic 60 and Stainless Steel.

Default Feature icon

Available with or without seal hole.

Default Feature icon

Chain assembly can be customized to any length.

Specifications

Body Material
Carbon Steel
Chain material
Carbon Steel
Seal Hole
No
Size
1.5
Type
Plug
