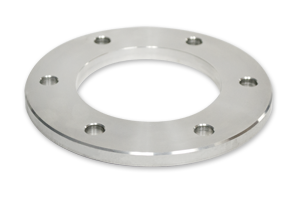

Round Flange 3"
Round Flange 3" - Image 2
Part #: PD3ARF

Round Flange 3″

3/8″ Thick Aluminum, (6) 7/16″ Bolt Holes on 4 7/8″ Bolt Circle

Default CAD icon
CAD Drawing
Download CAD
