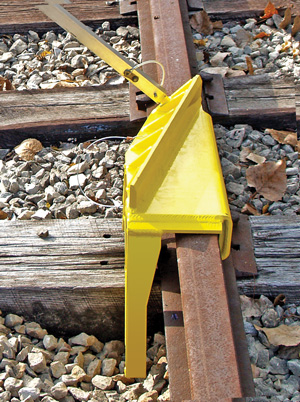

Portable Derail with Sign, Right Throw
SaberTooth, portable, right throw, derail with blue derail flag and holder. For rail size 90 – 141 pounds. Provides temporary derailing protection. Made out of formed steel plate housing. No welds in shear plane to fail. Full contact with rail head. Features safety hook. Tool free installation with no wrenches needed. Four thumbscrews anchor derail to rail head with no damage to rail surfaces, and secure the derail from rolling sideways or lifting. Tie-Biting hook at bottom of stepped tie brace prevents derail from being dislodged during derailing. Height above rail: 2.75-inches. Derail can be padlocked. Bright, durable, yellow powder coat finish. Use on wooden ties or full length pre-stressed concrete ties. Tie spacing: 18 – 24 inches on center. Derails freight cars and all sizes of locomotives operating at switching speeds of 10 mph or less. Weight: 40-pounds. For 4-axles and 6-axle locomotives and freight cars. Product of Aldon® Company
Key features
This product is manufactured by Aldon® Company.
Derails are emergency stopping devices designed to guide the wheels of a freight car or locomotive off the rails.
Hinged derails are lifted on and off the rail by hand or with lifting lever.
The blue derail sign is separately lifted and lowered by hand.
For more convenience consider the Pop-up Sign Holder for either 1-way or 2-way derails.
For use on wooden ties. Designed for freight cars and 4-axle locomotives operating at 5 mph or less. Do not use where 6-axle locomotives operate.
