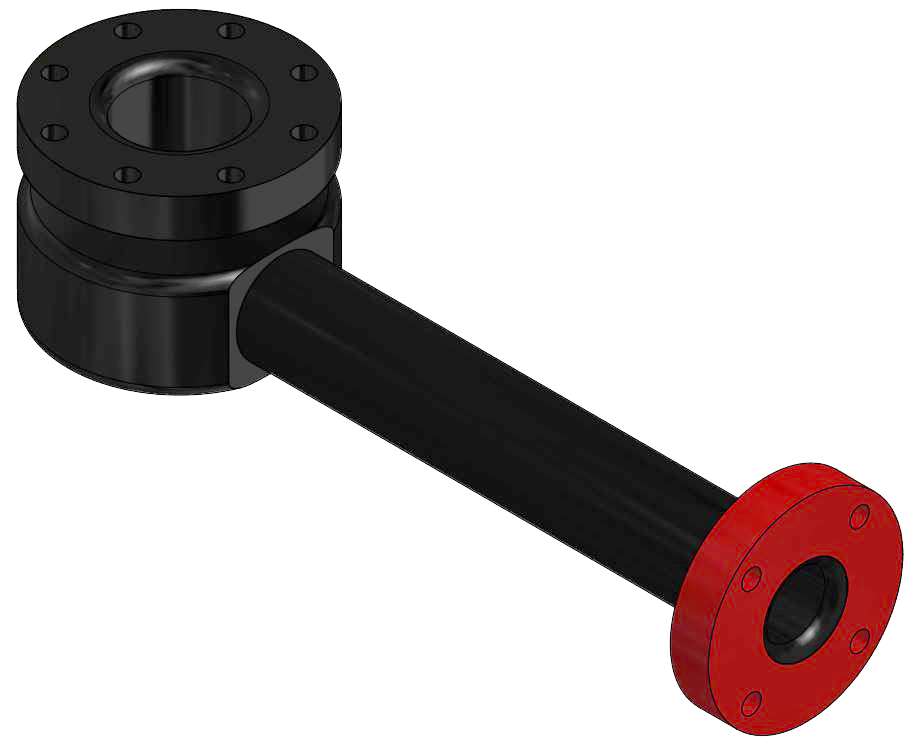

Pipe Elbow 4 inch x 2 inch ANSI flange x 90°, 7 inch height, 24-5/8 inch length
UHMWPE material. *37-5/8 inch total length assuming a 2″ thick manual valve, a 3inch x 1 inch parallel instrument tee, an air valve assembly, and either flange x cam fitting.
CAD Drawing
Download CADKey features
Confirm product flow during transfer applications with reliable, durable Sight Glass Flanges from Hazarsolve.
Inline view of product transfer.
Constructed of polished acrylic.
Raised face which prevents stress and or premature cracking.
Available in TTMA and ANSI bolt patterns.
Available in 2-inch to 8-inch.
