Part #: QI261DG3A

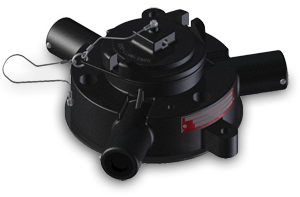

Noryl Quick Inspect Safety Vent, Black EPDM Gaskets, No Surge Protector, For use with Stainless Steel Rupture Disk

Black Noryl, Black EPDM Gaskets, No Surge Protector, AAR Approval # PRD-162102, SS Rupture Disc Sold Separately

Default CAD icon
CAD Drawing
Download CAD

Key features

Default Feature icon

Chemical and weather resistant lightweight rupture disk holders.

Default Feature icon

AAR approved.

Default Feature icon

Accepts standard rupture disk styles.

Default Feature icon

Threaded closures allow easy access for rupture disk inspection and cleaning.

Default Feature icon

A choice of body material options to accommodate any service.

Default Feature icon

Noryl or Stainless Steel.

Default Feature icon

Sold with or without a surge protector. Material options include Noryl, Ryton, Stainless Steel and Salco Polyethylene.

Specifications

Vent Material
Noryl
Surge Protector Y/N
No
Gasket Material
Black EPDM Sulfur Cured

AAR Approval

aar image
AAR Approval: PRD-162102

Resources

e-Catalog • February 12, 2026

General Purpose Tank Car Catalog

Product Card • December 17, 2025

Quick-Inspect Safety Vent
