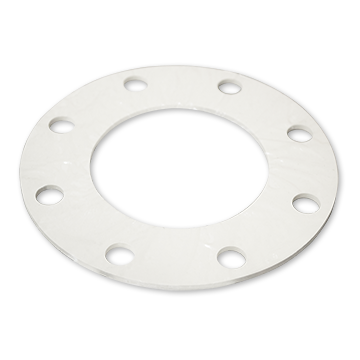

Flange Gasket 4 7/8″
White FDA Nitrile (Buna-N), 1/8″ Thickness, (8) 1/2″ Bolt Holes on 4 7/8″ Bolt Circle, 3 1/4″ ID x 5 3/4″ OD, Duro 60±5, Shore A
CAD Drawing
Download CADSee also
