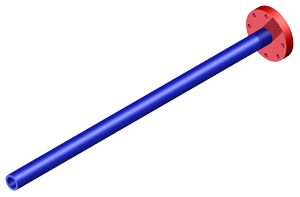

Eduction Tube 6″x3 1/2″
UHMWPE, 6″ 150 lb Flange, 2″ Flange Thickness, Ø3 1/2″ Outer Diameter x Ø2 1/2″ Inner Diameter, 72″ Long from the Bottom of the Flange, Serrated Gasket Surfaces, For Non-Flammable Service Only, AAR Approval # E-162104
CAD Drawing
Download CADKey features
Seamless construction and maintenance free UHMWPE dip tubes are corrosive resistant for use in the Chlor-Alkali chemical industry.
Economical, flexible and lightweight; can be easily installed by one worker. Can be cut to fit on location.
Produced from UHMWPE (UHMWPE) and Teflon®, making tubes six times more abrasive resistant than steel dip tubes.
Flex end on the tube eliminates the need for saddle/pipe guide.
Concentric serrations on the flange enables positive sealing of gaskets.
Available in a variety of sizes, flanges can be constructed to suit any inlet/outlet application.
Low profile reducing flanges (strike tubes) also available.
Kynar® coated flange also available for maximum corrosion resistance.
Wide Temperature Ranges: Pipes and flanges can withstand temperatures between -300° F and +180° F (-184° C to 82° C)Optional Flex End is FEP (Teflon®) and can withstand temperatures between -300° F and +400° F (-184° C to 204° C
