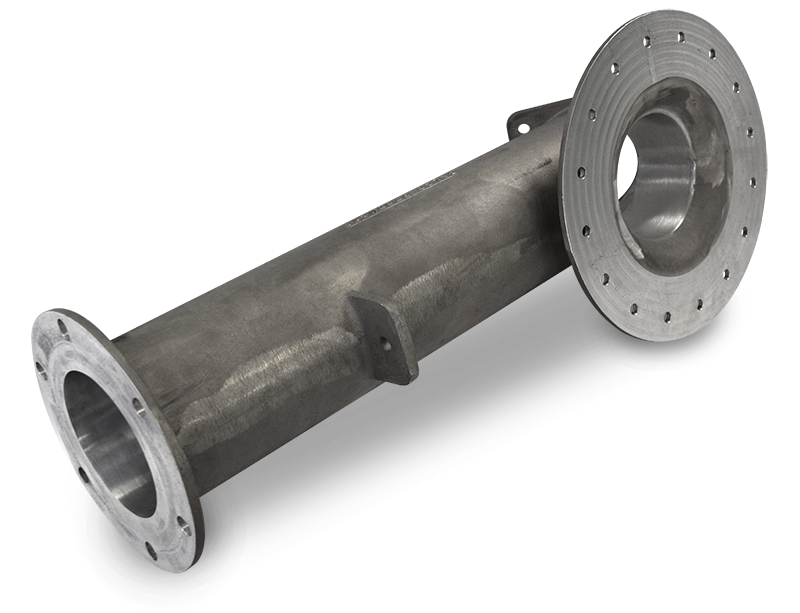

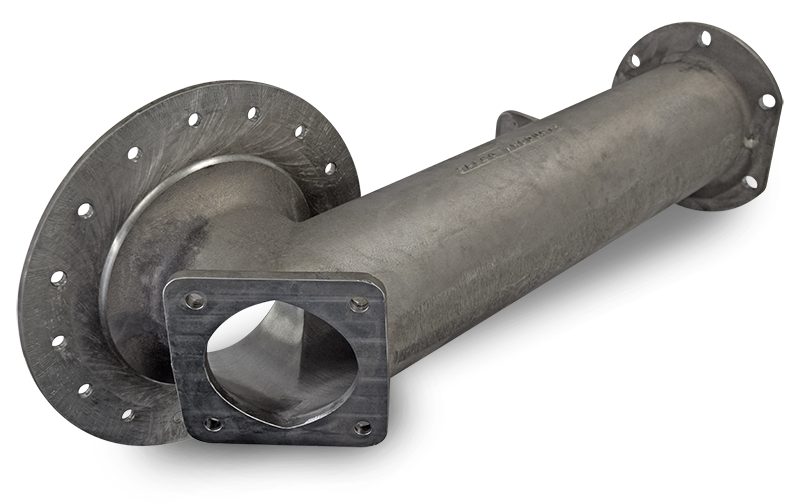

Discharge Tube 5″
Cast Alum, (16) 7/16″ Bolt Holes on 11″ Bolt Circle, for Hopper Attachment, (6) 9/16″ Bolt Holes on 7 7/8″ Bolt Circle for Wafer Valve Attachment
CAD Drawing
Download CADSee also
