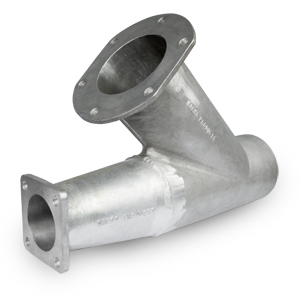

Discharge Lateral 5″ w/Reducer
Alum, Flange x Plain Pipe, (4) 9/16″ Bolt Holes on 5″ Bolt Circle,
Flange Middle Connection, (6) 9/16″ Bolt Holes on 7 5/8″ Bolt Circle,
19 1/4″ Long
CAD Drawing
Download CADSee also
